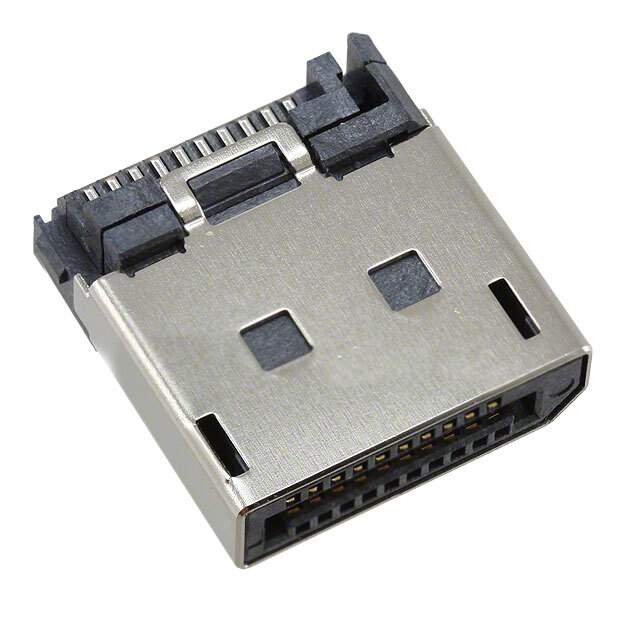

47271-0011 Real Image
Same model may have multiple batches, images only for reference.

47271-0011

Part No 47271-0011
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description PLUG SUB-ASSY FOR DISPLAYPORT
Datasheet
47271-0011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type DisplayPort
Number of Contacts 20
Gender Plug
Mounting Free Hanging (In-Line)
Termination Solder
Features Latch Lock
Temperature Range - Operating -20°C to 85°C
Number of Ports 1
Current Rating 0.5A
Voltage Rating 40VAC
Mating Cycles 10000
Contact Finish Gold
Shell/Shielding Material Copper Alloy
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 052772-47271-0011
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 47271-0011 CAD Model

Description

47271-0011 Switch Description

The 47271-0011 switch is a superior component for switching applications, known for its robustness and ease of use. Its ergonomic design allows for efficient operation while maintaining reliability.

  • Applications:
    • Industrial machinery
    • Home appliances
    • Control panels
    • Consumer electronics
  • Features and Benefits:
    • Long mechanical lifespan
    • Quick and secure action
    • High durability under load
    • User-friendly interface
  • Additional Details:
    • Type: SPST (Single Pole Single Throw)
    • Contact Rating: 5A at 250VAC
    • Mounting Style: Panel Mount
