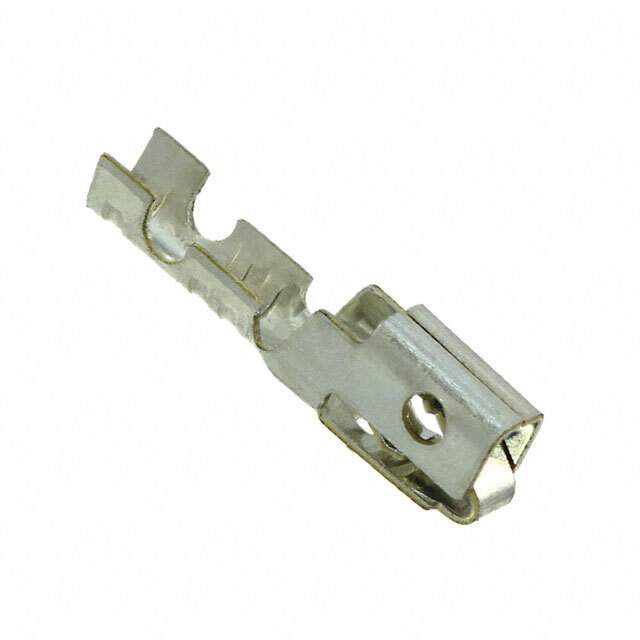

46999-0101 Real Image
Same model may have multiple batches, images only for reference.

46999-0101

Part No 46999-0101
Manufacturer Molex, LLC
Catalog Terminals
Description KK High Pressure Crimp Terminal, Female, 24-30 AWG, Brass, 2.54µm Tin (Sn) Plating, Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0101
Connector Type Connector, PCB, Signal
Contact Gender Female
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 2.5 A
Depth 2 mm
Gender Female
Halogen Free Low Halogen
Length 11.2 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 1
Orientation Straight
Plating Nickel
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Voltage Rating 600 V
Wire/Cable Gauge 22 AWG
Win Source Part Number 979864-46999-0101
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 46999-0101 CAD Model

Description

The Molex, LLC Connector is a PCB signal connector that is designed for crimp termination.

  • Contact Material: Brass
  • Voltage Rating: 600 V
  • Current Rating: 2.5 A
  • Number of Contacts: 1
  • Length: 11.2mm
  • Orientation: Straight
  • Contact Plating: Tin
  • Mounting: SMD (SMT)
  • Plating: Nickel
  • Halogen-Free: Yes
  • Maximum Operating Temperature: 105 °C
