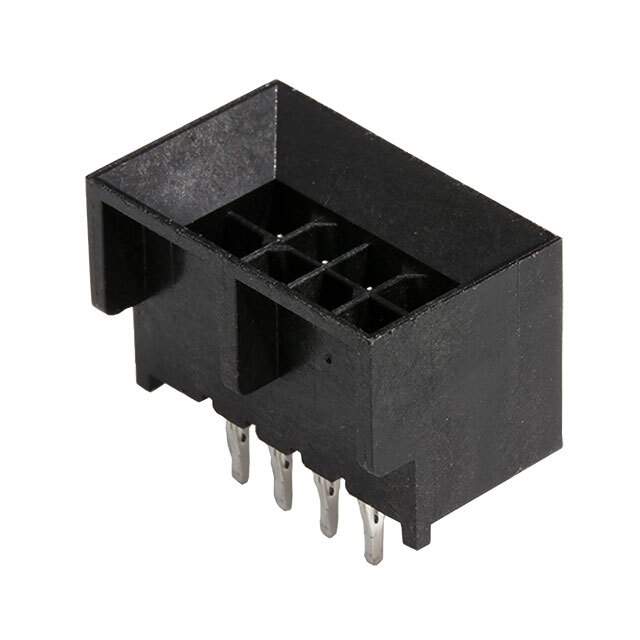

45280-0852 Real Image1 45280-0852 Real Image2
Same model may have multiple batches, images only for reference.
45280-0852 Real Image1 45280-0852 Real Image2
45280-0852 Real Image1 45280-0852 Real Image2
Same model may have multiple batches, images only for reference.

45280-0852

Part No 45280-0852
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Wire to Board HDR 8 POS 3mm Press Fit ST Thru-Hole Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Male
Contact Plating Gold
Country of Origin US
Current Rating 5 A
Glow Wire Compliant Non-compliant
Housing Material Nylon
Lead Length 4.9 mm
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Vertical
Pitch 3 mm
Plating Tin
RoHS Compliant
Row Spacing 3 mm
Termination Through Hole
Voltage Rating 600 V
Win Source Part Number 1214949-45280-0852
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 45280-0852 CAD Model

Description

The Molex 1214949-45280-0852 is an 8 position, 3 mm pitch, 2 row through-hole male connector.

  • Positions: 8
  • Pitch: 3 mm
  • Rows: 2
  • Termination: Through-Hole
  • Voltage Rating: 600 V
  • Current Rating: 5 A
  • Housing Material: Nylon
  • Contact Plating: Gold with Tin Plating
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 105 °C
  • Contact Gender: Male
  • Contacts: 8
  • Circuits: 8
  • Connector Type: Circular Connector
  • Application: Housings
  • Supply: Limited
  • Popularity: Medium
  • Lead Length: 4.9 mm
  • Glow Wire Compliant: No
