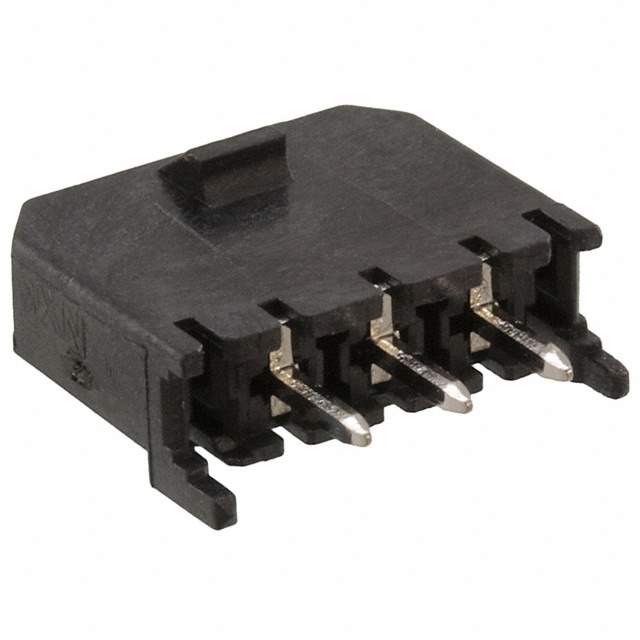

0436500327 Real Image
Same model may have multiple batches, images only for reference.

0436500327

Part No 0436500327
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3MM / Connector Header Through Hole 3 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Micro-Fit 3.0 43650
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP) , Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
Standard Package 2,550
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351470-0436500327
Ultra Librarian 3D Model Ultra Librarian 0436500327 CAD Model

Description

The Molex Micro-Fit 3.0 43650 series 1351470-0436500327 is a male pin header connector with 3 positions and 1 row.

  • Number of Positions: 3
  • Number of Rows: 1
  • Features: Board Guide
  • Fastening Type: Locking Ramp
  • Insulation Material: Liquid Crystal Polymer, Glass Filled
  • Contact Material: Brass
  • Pitch: 3.00 mm
  • Contact Finish: Tin
  • Application: General Purpose, Medical, Military, and Telecommunications
  • Packaging: Tray
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40 to 85 °C
