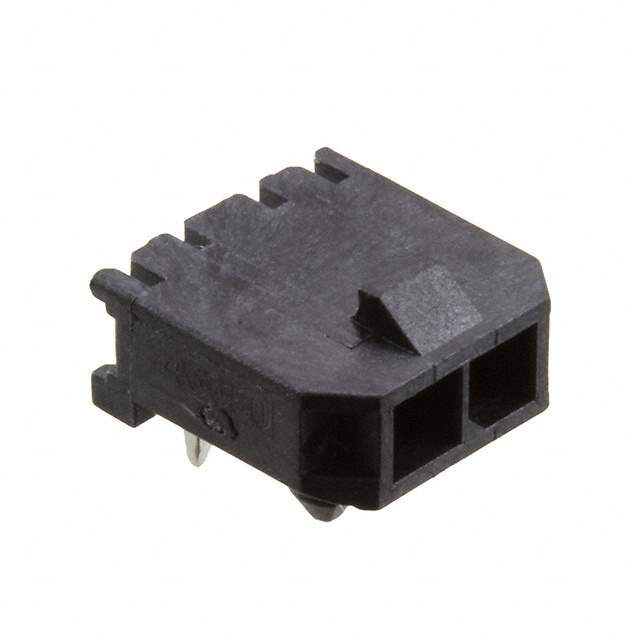

43650-0201

Part No 43650-0201
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2POS 3MM RT ANG GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.172" (4.37mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 052761-43650-0201
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43650-0201 CAD Model

Description

43650-0201 Product Description

The 43650-0201 combines innovation with functionality to provide superior electronic solutions. Engineered for resilience, it is perfect for applications where reliability is non-negotiable.

  • Applications and Projects:
    • Internet of Things (IoT): Integral in developing smart devices.
    • Audio and Visual Equipment: Enhances fidelity and performance.
    • Security Systems: Key component in advanced surveillance technology.

Features and Benefits

  • Innovative Design: Unique structure offering expanded functionality.
  • High Reliability: Consistent operation under challenging conditions.
  • User-friendly: Simplified interface for faster integration.

Additional Details: The 43650-0201 features advanced security protocols and highly regarded engineering standards, setting the benchmark for quality in electronic components.
