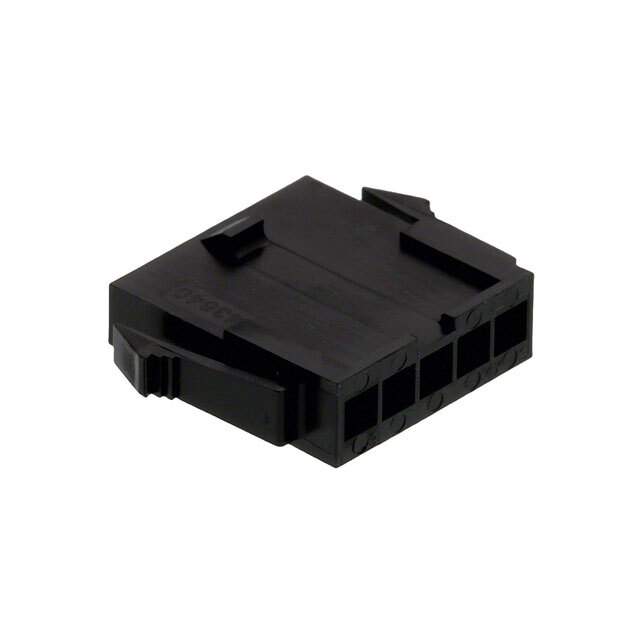

Same model may have multiple batches, images only for reference.

43640-0500

Name: 43640-0500
Brand: Molex, LLC
SKU: 1003500
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43640-0500
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Plug Housing (0.118") Micro-Fit 3.0, Single Row, Panel Mount Ears, 5 Circuits
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Country of Origin	US
Current Rating	2.5 A
Depth	24.53 mm
Gender	Male
Glow Wire Compliant	Non-compliant
Height	3.86 mm
Housing Color	Black
Housing Material	Polyester
Length	15.8 mm
Material	Polyester
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	250 V
Max Voltage Rating (DC)	250.25 kV
Min Operating Temperature	-40 °C
Mount	Panel
Number of Contacts	5
Number of Pins	5
Number of Positions	5
Number of Rows	1
Operating Supply Voltage	250 V
Orientation	Straight
Packaging	Bulk
Pitch	3 mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Schedule B	8536695050, 8536695050
Termination	Crimp
Win Source Part Number	1003500-43640-0500
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 43640-0500 CAD Model

Alternative Products

Description

The Molex, LLC 1003500-43640-0500 circular connector housing is a black, 5-pin, 3mm pitch housing designed for crimp termination.

Current Rating: 2.5A
Maximum Operating Temperature: 105 °C
Housing Material: Polyester
Height: 3.86 mm
Length: 15.8 mm
Depth: 24.53 mm
Mounting: Panel mounting
Maximum Voltage Rating (VAC): 250V AC
Maximum Voltage Rating (kVDC): 250.25 kV DC
RoHS Compliant: Yes
Radiation Hardening: Radiation hardening-free
ECCN: EAR99
