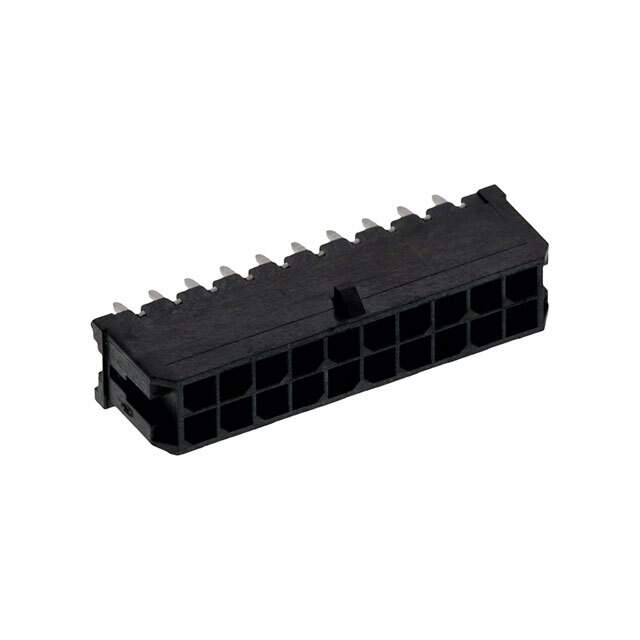

0430452013 Real Image
Same model may have multiple batches, images only for reference.

0430452013

Part No 0430452013
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 3MM / Connector Header Through Hole 20 position 0.118" (3.00mm)
Datasheet
0430452013 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043045
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 43045-2013,23-0430452013,0430452013-E,043045-2013-E,430452013-E,043045-2013,43045-2013-E,WM2657,430452013,WM2657-ND
Standard Package 1
Win Source Part Number 1332441-0430452013
Ultra Librarian 3D Model Ultra Librarian 0430452013 CAD Model

Description

The Molex LLC Male Pin Header Connector is an excellent choice for applications that require a high current rating of 8A and a voltage rating of 600V.

  • Manufacturer: Molex LLC
  • Current Rating: 8A
  • Voltage Rating: 600V
  • Positions: 20
  • Contact Material: Brass
  • Contact Finish: Gold
  • Termination: Kinked Pin and Solder
  • Mounting: Through Hole
  • Shrouding: Shrouded 4 Wall
  • RoHS Compliant: Yes
  • Applications: General Purpose, Medical, Military, and Telecommunications
