Same model may have multiple batches, images only for reference.

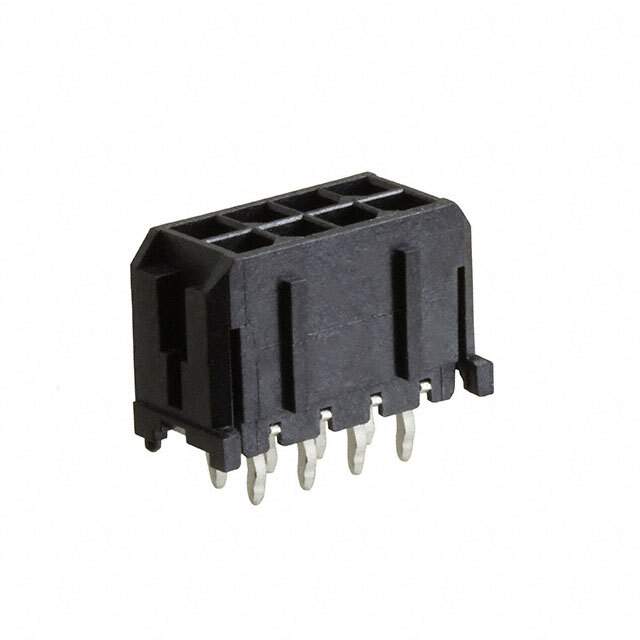

0430450814 Real Image
Same model may have multiple batches, images only for reference.

0430450814

Part No 0430450814
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 3MM / Connector Header Through Hole 8 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043045
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0430450814-E,WM1798-NDR,43045-0814-E,WM1798,043045-0814-E,430-45-0814-P,430450814-E,43045-0814-TR120,430450814,043045-0814,43045-0814
Standard Package 1,440
Win Source Part Number 1332725-0430450814
Ultra Librarian 3D Model Ultra Librarian 0430450814 CAD Model

Description

The Molex 1332725-0430450814 is a rectangular male pin header connector with 8 positions and 2 rows.

  • Connector Type: Rectangular Male Pin Header
  • Number of Positions: 8
  • Number of Rows: 2
  • Material: Brass
  • Voltage Rating: 600V
  • Fastening: Locking Ramp
  • Alignment: Board Guide
  • Contact Finish (Mating): Gold, 30.0µin
  • Contact Finish (Post): Tin, 100.0µin
  • Mounting: Through-Hole
  • Pitch (Mating): 0.118" (3.00mm)
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Applications: General-Purpose, Medical, Military, Telecommunications
