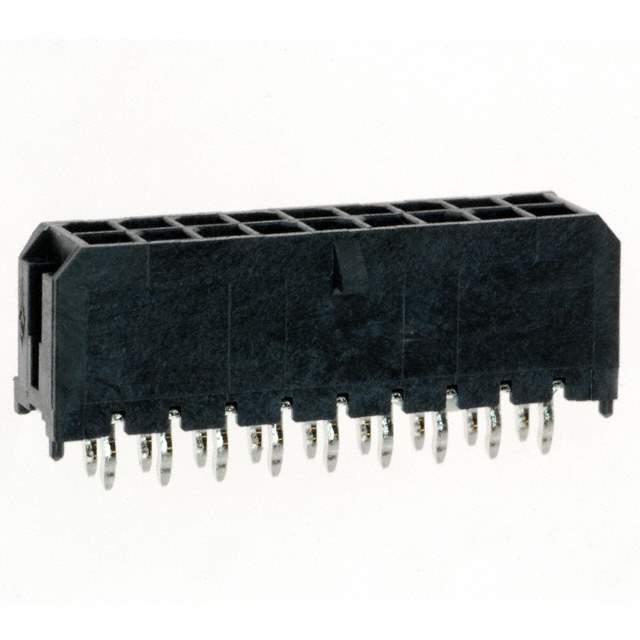

Same model may have multiple batches, images only for reference.

43045-1812

Name: 43045-1812
Brand: Molex, LLC
SKU: 1013607
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43045-1812
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Micro-Fit 3 Through Hole PCB Header, Straight, 18 Contacts, 2 Rows, 3mm Pitch
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	5 A
Depth	8.77 mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Compliant
Halogen Free	Low Halogen
Height	9.91 mm
Housing Color	Black
Housing Material	Thermoplastic
Insulation Resistance	1 GΩ
Lead Pitch	3 mm
Length	31.15 mm
Material	Polyester
Max Current Rating	5 A
Maximum Operating Temperature	105 °C
Max Voltage Rating (DC)	250.25 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	18
Number of Contacts	18
Number of Pins	18
Number of Positions	18
Number of Rows	2
Operating Supply Voltage	250 V
Orientation	Vertical, Right Angle
Pitch	3 mm
Plating	Tin
REACH SVHC	Unknown
RoHS	Compliant
Row Spacing	3 mm
Termination	Solder
Voltage Rating	250 V
Voltage Rating (AC)	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1013607-43045-1812
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 43045-1812 CAD Model

Alternative Products

Description

This Molex, LLC circular connector housing is a thermoplastic male housing with a black color.

Pitch: 3 mm
Positions: 18
Termination: Solder terminated
Contact Material: Brass
Voltage Rating: 250 V
Current Rating: 5 A
Contact Plating: Tin
Housing Color: Black
RoHS Compliant: Yes
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 105 °C
Depth: 8.77 mm
Mounting Type: Through hole
