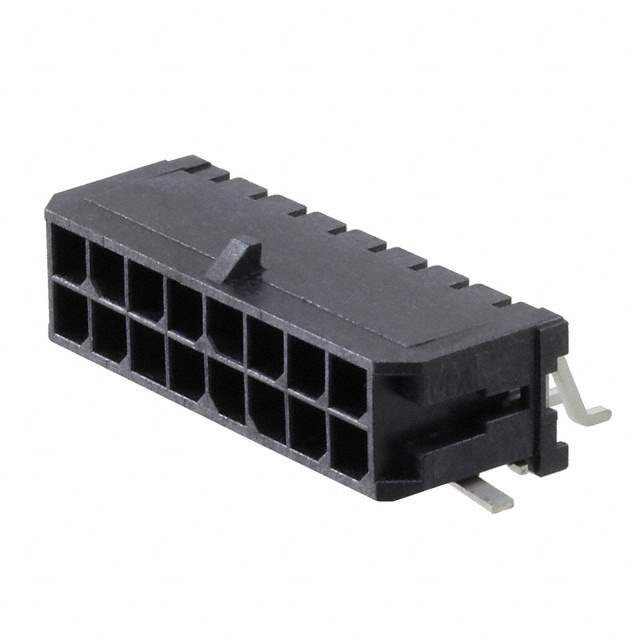

The Molex electronic component is a black-colored male pin connector with 16 positions.

• Manufacturer: Molex, LLC
• Win Source Part Number: 986923-43045-1610
• Pitch: 3 mm
• Rows: Two
• Row Spacing: 2.9972 mm
• Termination: Solder
• Fastening Type: Ramp
• Contact Material: Brass
• Voltage Rating: 600 V
• Current Rating: 5 A
• Length: 28.15 mm
• Housing Material: Polymer
• Contacts: 16
• Orientation: Right angle
• Contact Plating: Gold
• Housing Color: Black
• Contact Resistance: 10 mΩ
• Plating: Tin
• Suitable For: Circular connector housings
• Supply and Demand Status: In shortage
• Maximum Operating Temperature: 105 °C
• Depth: 15.4 mm
• Mounting: Surface-mounted
• RoHS Compliant: Yes
• Minimum Operating Temperature: -40 °C
• Max Voltage Rating (AC): 250 V
• Max Voltage Rating (DC): 250.25 kV
• Glow Wire Compliant: Yes
