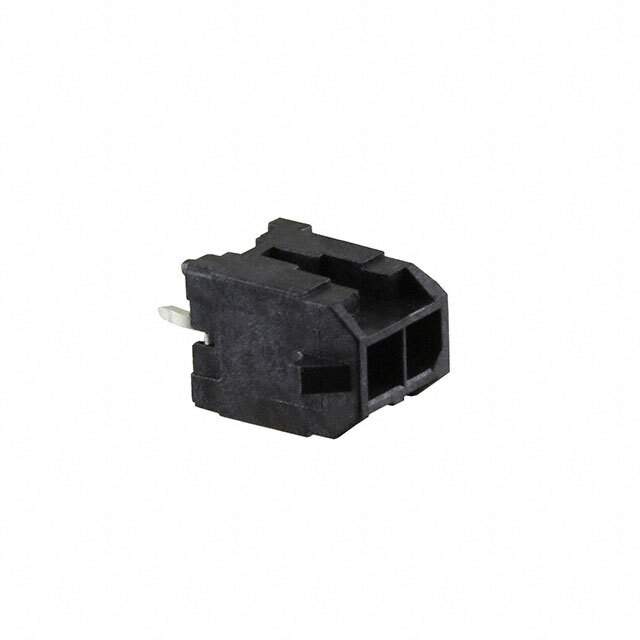

43045-0214

Part No 43045-0214
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2POS 3MM VERT GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 052757-43045-0214
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43045-0214 CAD Model

Description

43045-0214 Connector

The 43045-0214 is a high-performance connector known for its reliability and efficiency in various electronic applications. It features a compact design, enabling easy integration into tight spaces while maintaining optimal connectivity.

  • Applications and Projects:
    • Consumer electronics
    • Automotive systems
    • Industrial machinery controls
    • Data communication devices
  • Features and Benefits:
    • Diverse range of applications
    • Effortless installation and maintenance
    • High conductivity for stable connections
    • Durable construction to withstand environmental stresses
  • Additional Details:
    • Compliance with international safety standards
    • Available in multiple configurations to suit various needs
