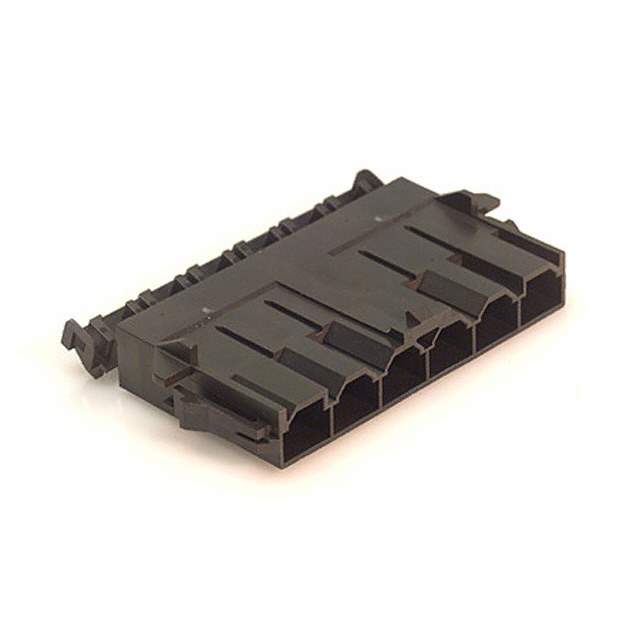

42818-0612 Real Image
Same model may have multiple batches, images only for reference.

42818-0612

Part No 42818-0612
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Header Connector, cable Mount, recept, 6 Contacts, pin, 0.394 Pitch, latch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Case / Package 0612
Color Black
Connector Type Power, Rectangular
Contact Gender Male
Contact Plating Tin
Contact Resistance 1 mΩ
Country of Origin US
Current Rating 50 A
Depth 34.6 mm
Diameter 10 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Free Lead Free
Length 71.3 mm
Material Polyester
Max Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Panel
Number of Circuits 6
Number of Contacts 6
Number of Pins 6
Number of Poles 6
Number of Positions 6
Number of Rows 1
Orientation Straight
Packaging Bulk
Pitch 10 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Voltage Rating (AC) 250 V
Voltage Rating (DC) 600 V
Width 13.8 mm
Wire/Cable Gauge 9 AWG
Working Voltage 600 V
Win Source Part Number 1229850-42818-0612
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 42818-0612 CAD Model

Description

The Molex Power Rectangular Connector is a crimp termination connector designed for use in various applications.

  • Connector Type: Power Rectangular Connector
  • Termination: crimp
  • Contacts: 6
  • Gender: male pin
  • Pitch: 10 mm
  • Orientation: straight
  • Panel Mount: Yes
  • Supply and Demand Status: limited
  • Lead-Free: Yes
  • Current Rating: 50 A
  • Working Voltage: 600 V
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
