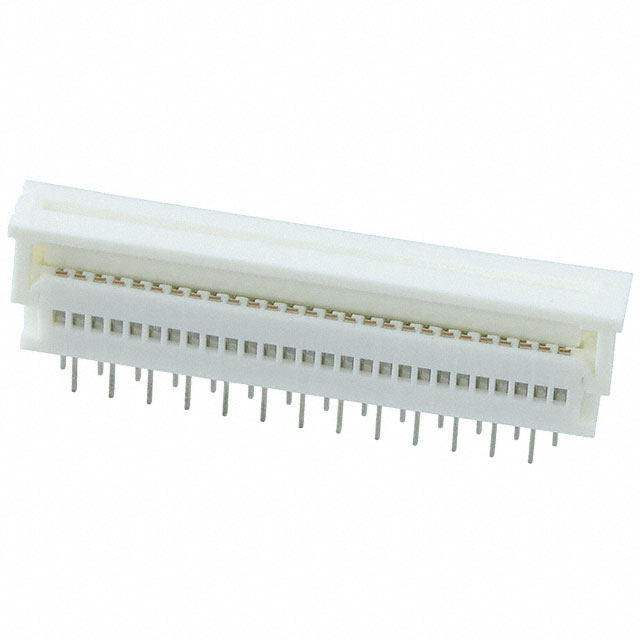

Same model may have multiple batches, images only for reference.
39532275 Molex, LLC
Same model may have multiple batches, images only for reference.

39532275

Part No 39532275
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 27POS 1.25MM PCB
Datasheet
39532275 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Flat Flex Type FFC, FPC
Mounting Through Hole
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 27
Pitch 0.049" (1.25mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.295" (7.50mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Finish Tin Bismuth
Housing Material Polybutylene Terephthalate (PBT), Polyester
Actuator Material Polybutylene Terephthalate (PBT), Polyester
Features Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -20°C to 80°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Contact Finish Thickness 39μin (1.00μm)
Mating Cycles 30
Win Source Part Number 1006141-39532275
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 39532275 CAD Model

Description

The Molex Zero Insertion Force (ZIF) connector is a 27-position connector that comes with a slide lock and contacts that are vertical and one-sided.

  • Positions: 27
  • Lock: Slide lock
  • Contact Orientation: Vertical and one-sided
  • Cable Type: Flat flex cables (FFCs) and flexible printed circuits (FPCs)
  • Cable Thickness: 0.30mm
  • Material: Polybutylene terephthalate (PBT) and polyester, UL94 V-0 rated
  • Voltage Rating: 200V
  • Current Rating: 1A
  • Contact Finish: Tin bismuth
  • Contact Finish Thickness: 39μin (1.00μm)
  • Packaging: Tray
  • Height Above Board: 0.295" (7.50mm)
  • Temperature Range: -20°C to 80°C
  • Mating Cycle: 30
