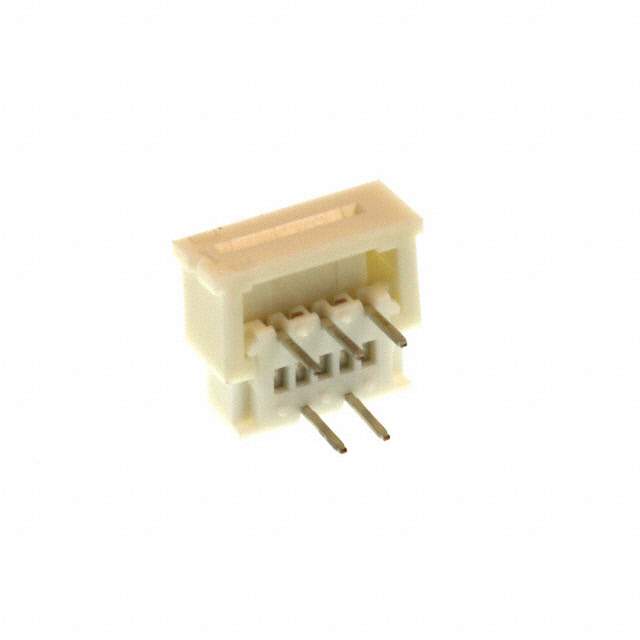

0039532054 Real Image
Same model may have multiple batches, images only for reference.

0039532054

Part No 0039532054
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 5POS 1.25MM R/A / 5 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Datasheet
0039532054 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Molex
Packaging Tray
Flat Flex Type FFC, FPC
Mounting Through Hole, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 5
Pitch 0.049" (1.25mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.213" (5.40mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Housing Material Polybutylene Terephthalate (PBT), Polyester
Actuator Material Polybutylene Terephthalate (PBT), Polyester
Features Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -20°C ~ 80°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 39.4µin (1.00µm)
Mating Cycles 30
Base Product Number 003953
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 0039-53-2054,39-53-2054,WM14523,0039532054-ND,5597-05APB7F,39532054,003953-2054
Standard Package 1,500
Win Source Part Number 1333488-0039532054
Ultra Librarian 3D Model Ultra Librarian 0039532054 CAD Model

Description

The Molex 1333488-0039532054 is a high-quality electronic component that is designed for use in connectors and interconnects.

  • Type: flat flexible connector assembly
  • Feature: zero insertion force (ZIF)
  • Termination: solder
  • Contact Finish: tin bismuth
  • Contact Material: phosphor bronze
  • Voltage Rating: 200V
  • Current Rating: 1A
  • Materials: polybutylene terephthalate (PBT) and polyester
  • RoHS3 Compliant: yes
  • Flammability Rating: UL94 V-0
  • Temperature Range: -20°C to 80°C
  • Mounting: through-hole, right-angle
