Same model may have multiple batches, images only for reference.

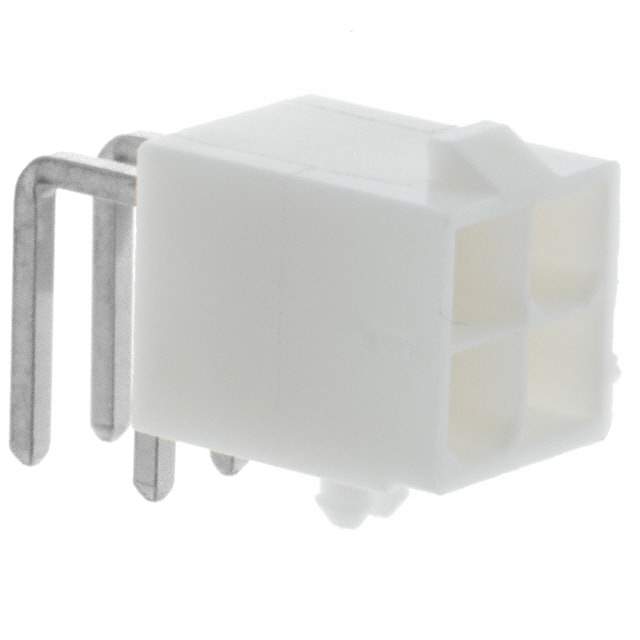

39-30-1042 Real Image
Same model may have multiple batches, images only for reference.

39-30-1042

Part No 39-30-1042
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Connector; Nylon (Housing); 4; Natural; RoHS Compliant, ELV Compliant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Brass, Gold
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 8 A
Depth 19.4 mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 11.4 mm
Housing Color White
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 4.2 mm
Length 9.6 mm
Material Brass
Max Current Rating 6 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Positions 4
Number of Rows 2
Orientation Right Angle
Pitch 4.2 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Row Spacing 4.2 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1002688-39-30-1042
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-30-1042 CAD Model

Description

The Molex, LLC 1002688-39-30-1042 is a male connector that has 4 positions and a pitch of 4.2 mm.

  • Positions: 4
  • Pitch: 4.2 mm
  • Color: Natural
  • Rows: 2
  • Row Spacing: 4.2 mm
  • Termination: Solder
  • Contact Material: Brass and gold
  • Voltage Rating: 600 V
  • Current Rating: 8 A
  • Material: Nylon
  • Contacts: 4
  • Gender: Male
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Maximum Operating Temperature: 105°C
  • Minimum Operating Temperature: -40°C
