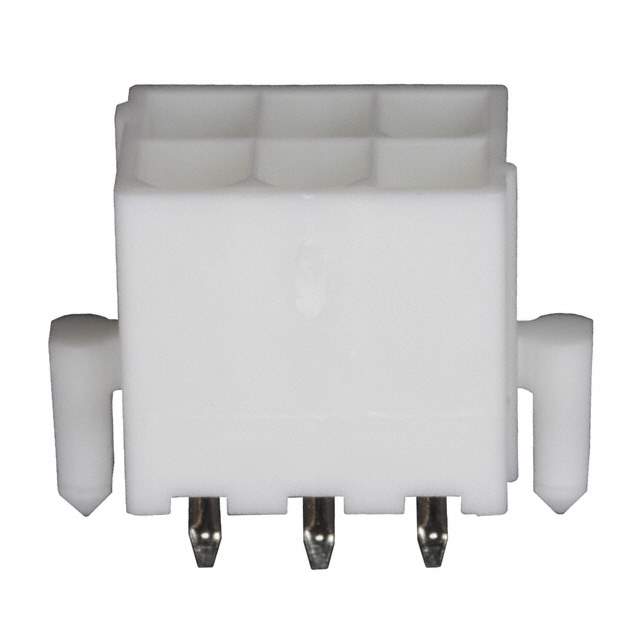

Same model may have multiple batches, images only for reference.

39-29-9066

Name: 39-29-9066
Brand: Molex, LLC
SKU: 419604
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	39-29-9066
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 6POS 4.2MM VERT TIN
Datasheet	39-29-9066 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex Connector Corporation
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	4.20mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.504" (12.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	35μin (0.90μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	Board Lock
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Contact Finish Thickness - Post	35μin (0.90μm)
Applications	General Purpose, Industrial, Telecommunications
Win Source Part Number	1005271-39-29-9066
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 39-29-9066 CAD Model

Alternative Products

Description

The 1005271-39-29-9066 is a header connector manufactured by Molex Connector Corporation.

Number of Positions: 6
Positions Loaded: All
Shrouded: 4 Walls
Board Lock: Yes
Contact Type: Male Pin
Mounting Type: Through Hole
Insulation Material: Polyamide (PA66), Nylon 6/6
Insulation Color: Natural
Application: General Purpose, Industrial, and Telecommunication
Pitch-Mating: 4.20mm
Row Spacing-Mating: 0.165" (4.20mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Thickness: 35μin (0.90μm)
Category: Connectors, Interconnects
Popularity: Medium
