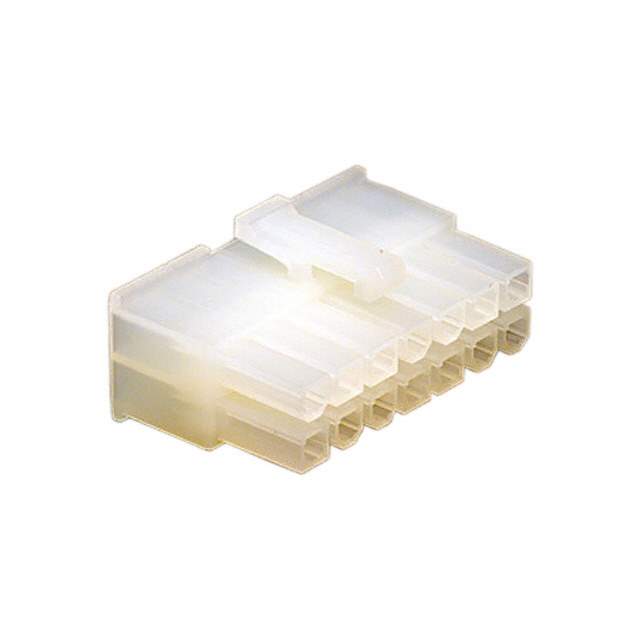

Same model may have multiple batches, images only for reference.

39-01-2140

Name: 39-01-2140
Brand: Molex, LLC
SKU: 763431
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	39-01-2140
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RECEPT 14POS DUAL
Datasheet	39-01-2140 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Series	Mini-Fit Jr 5557
Packaging	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	14
Pitch	0.165" (4.20mm)
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Note	Contacts Not Included
Win Source Part Number	763431-39-01-2140
Popularity	Medium
Supply and Demand Status	Limited
Family Name	5557
Introduction Date	June 08, 2010
ECCN	EAR99
Country of Origin	China, Hong Kong, India, Italy, Japan, Netherlands, Poland, Republic of Korea, United States of America
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 39-01-2140 CAD Model

Alternative Products

Description

The Molex, LLC Mini-Fit Jr 5557 connector is a high-quality product that is perfect for use in various electronic applications.

Color: Natural
Positions: 14
Pitch: 0.165" (4.20mm)
Connector Type: Receptacle
Contact Type: Female Socket
Mounting: Free Hanging (in-Line)
Contact Termination: Crimp
Row Spacing: 0.165" (4.20mm)
Popularity: Medium
