Same model may have multiple batches, images only for reference.

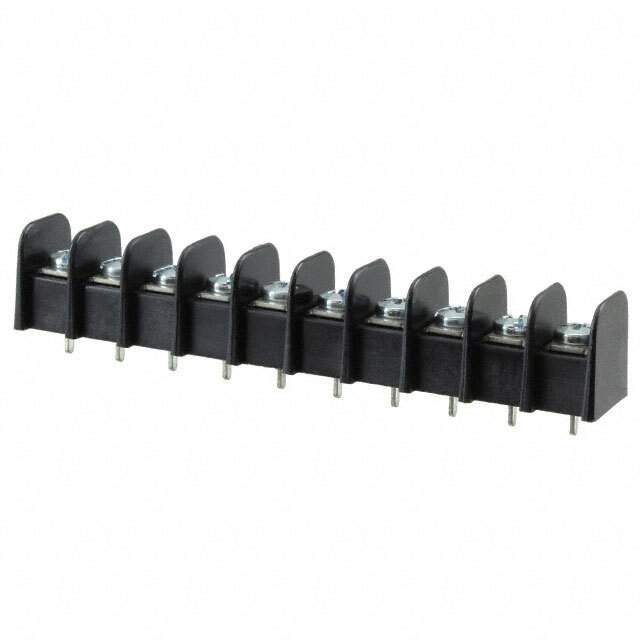

38720-6310 Real Image
Same model may have multiple batches, images only for reference.

38720-6310

Part No 38720-6310
Manufacturer Molex, LLC
Catalog Terminal Blocks
Description 9.53mm Pitch Beau PCB Terminal Strip, without Mounting Ends, 10 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Contact Material Steel
Contact Plating Tin
Country of Origin US
Current Rating 15 A
Depth 15.7 mm
Flammability Rating UL94 V-0
Housing Color Black
Housing Material Thermoplastic
Insulation Material Thermoplastic
Length 97.3 mm
Material Brass, Polyester
Maximum Operating Temperature 100 °C
Max Supply Voltage 300 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Rows 1
Number of Wire Entries 10
Orientation Horizontal
Packaging Tape & Reel
Pitch 9.52 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating 300 V
Wire/Cable Gauge 14 AWG
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 14 AWG
Win Source Part Number 1002538-38720-6310
Categories Terminal Blocks
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 38720-6310 CAD Model

Description

The Molex 1002538-38720-6310 is a 10-position, 9.52 mm pitch, horizontal, through-hole terminal block. With a voltage rating of 300 V and a current rating of 15 A, this connector is suitable for use with 14-22 AWG wire/cable.

  • Positions: 10
  • Pitch: 9.52 mm
  • Mounting: Through-hole
  • Voltage Rating: 300 V
  • Current Rating: 15 A
  • Wire/Cable Gauge: 14-22 AWG
  • Housing Material: Thermoplastic
  • Contact Material: Steel
  • Packaging: Tape and Reel
  • Maximum Operating Temperature: 100°C
