Same model may have multiple batches, images only for reference.

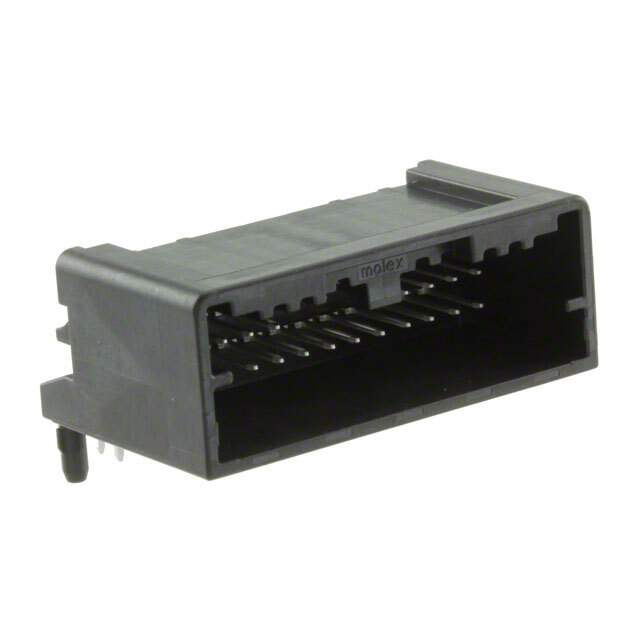

0348260200 Real Image
Same model may have multiple batches, images only for reference.

0348260200

Part No 0348260200
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2MM / Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 20
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.218" (5.55mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.460" (11.68mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive
Base Product Number 034826
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 34826-0200,348260200,WM11133,034826-0200
Standard Package 400
Win Source Part Number 1332650-0348260200
Ultra Librarian 3D Model Ultra Librarian 0348260200 CAD Model

Description

The Molex 1332650-0348260200 is a connector that is perfect for use in automotive applications.

  • Connector Type: rectangular connector
  • Header Type: male pin
  • Positions: 20
  • Board Guide: Yes
  • Contact Type: male pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: soldered
  • Fastening Type: latch holder
  • Contact Material: brass
  • Insulation Material: syndiotactic polystyrene (SPS), glass filled
  • Pitch-Mating: 0.079 inches
  • Contact Finish-Mating: tin
  • Contact Finish-Post: tin
  • Insulation Color: black
  • Shrouded: 4 walls
  • Contact Shape: square
  • ECCN: EAR99
  • REACH Status: unaffected
  • HTSUS: 8536.69.4040
