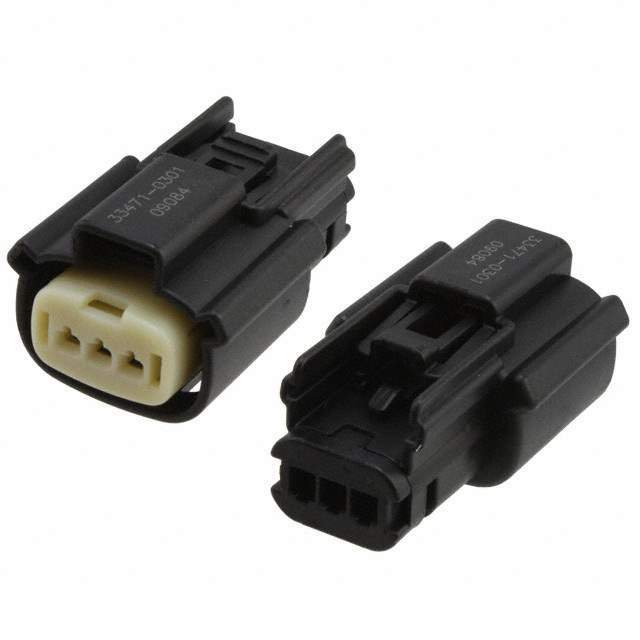

33471-0301 Real Image
Same model may have multiple batches, images only for reference.

33471-0301

Part No 33471-0301
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn Housing RCP 3 POS 3.5mm Crimp ST Cable Mount Black Box Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Polystyrene
Color Black
Connector Type Receptacle, Socket
Country of Origin US
Current Rating 22 A
Fastening Type Latch
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Polystyrene
Maximum Operating Temperature 125 °C
Max Voltage Rating (DC) 500 V
Min Operating Temperature -40 °C
Mount Cable, Free Hanging
Number of Contacts 3
Number of Pins 3
Number of Positions 3
Number of Rows 1
Orientation Straight
Pitch 3.5 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536695050
Termination Crimp
Voltage Rating (DC) 250 V
Win Source Part Number 1017478-33471-0301
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 33471-0301 CAD Model

Description

This is a 3-position black receptacle socket connector manufactured by Molex, LLC.

  • Positions: 3
  • Pitch: 3.5 mm
  • Termination: Crimp
  • Fastening Type: Latch
  • Current Rating: 22 A
  • Maximum Operating Temperature: 125 °C
  • Material: Polystyrene
  • Halogen-Free: Yes
  • Voltage Rating (DC): 250 V
  • Maximum Voltage: 500 V (DC)
  • Mounting: Cable and Free Hanging
  • RoHS: Compliant
  • Radiation-Hardened: Yes
