26580030 Molex, LLC
Same model may have multiple batches, images only for reference.

26580030

Part No 26580030
Manufacturer Molex, LLC
Catalog Rectangular Connectors

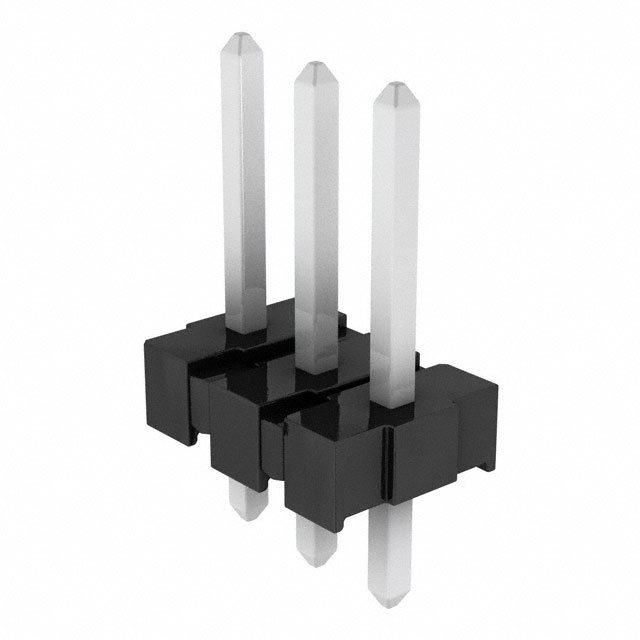

Description KK 156 HDR ASSY FLAT BKWY 3POS
Datasheet
26580030 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series KK 41661
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.765" (19.43mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 1.030" (26.16mm)
Insulation Height 0.128" (3.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60μin (1.52μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 60μin (1.52μm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Win Source Part Number 764479-26580030
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 26580030 CAD Model

Description

The KK 41661 header connector from Molex Connector Corporation is a through-hole mounting style connector with male pin contact type.

  • Pitch: 0.156" (3.96mm)
  • Insulation Material: Polyester, Glass Filled
  • Wire Gauge: 14-22 AWG
  • Contact Finish: Tin
  • Supply/Demand Status: Balanced
