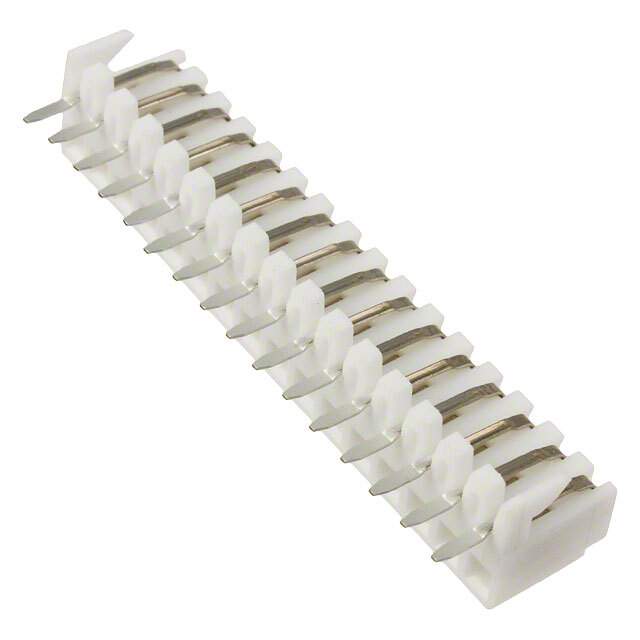

Same model may have multiple batches, images only for reference.

0022173162

Get a Quote

Part No	0022173162
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 16POS 0.1 GOLD PCB / 16 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Molex
Packaging	Tray
Connector Type	Receptacle, Bottom Entry
Contact Type	Non-Gendered
Style	Board to Board or Cable
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Insulation Color	White
Insulation Height	0.311" (7.90mm)
Contact Length - Post	0.132" (3.35mm)
Temperature Range - Operating	-40°C ~ 80°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Hooks
Current Rating (Amps)	2.5A
Voltage Rating	250VAC
Applications	Automotive, General Purpose, Medical, Telecommunications
Insulation Material	Polyamide (PA), Nylon
Contact Shape	Square
Contact Material	Brass
Contact Finish Thickness - Post	50.0µin (1.27µm)
Base Product Number	002217
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A-4455-BH16D(208),WM2790,22-17-3162,0022-17-3162,22173162
Standard Package	1,296
Win Source Part Number	1332857-0022173162
Ultra Librarian 3D Model	Ultra Librarian 0022173162 CAD Model

Description

Molex 1332857-0022173162 is a rectangular connector that is used in electronic circuits.

Type: Non-Gendered Bottom Entry Receptacle
Color: White
Pitch: 0.100 inches
Rows: 1
Fastening Type: Push-Pull
Packaging: Tray
Standard Package: 1,296
Compliance: RoHS3
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.4040
Other Part Numbers: A-4455-BH16D(208), WM2790, 22-17-3162
