Same model may have multiple batches, images only for reference.

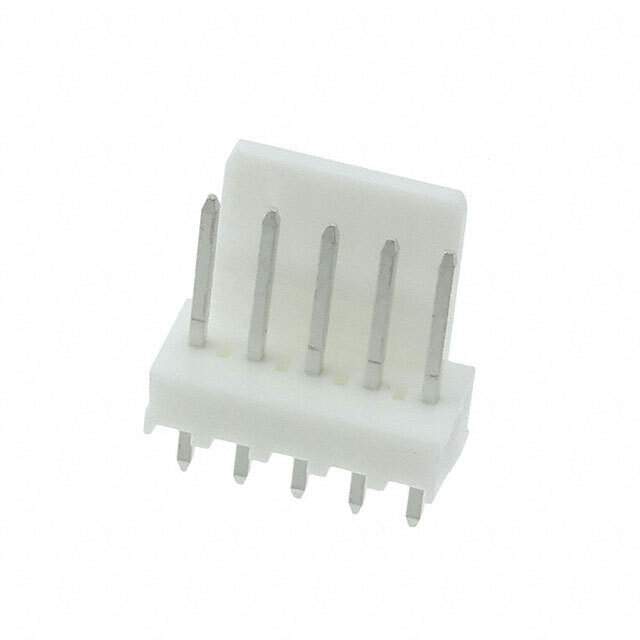

22-27-2051 Real Image
Same model may have multiple batches, images only for reference.

22-27-2051

Part No 22-27-2051
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 5POS .100 VERT TIN / Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole KK® Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 052735-22-27-2051
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 6410
Introduction Date September 22, 2009
ECCN EAR99
Country of Origin China, HongKong, India, Ireland, Mexico, PuertoRico, Thailand
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 22-27-2051 CAD Model

Description

Product Features and Benefits

  • Easy integration with existing systems
  • High-temperature resistance
  • Low contact resistance to enhance conductivity

Applications

  • Industrial machinery
  • Home automation systems
  • Data communication networks

Additional Details

The 22-27-2051 is designed for reliability and efficiency, capable of performing under various environmental stresses. Its straightforward integration capability makes it a preferred choice in complex and large systems.
