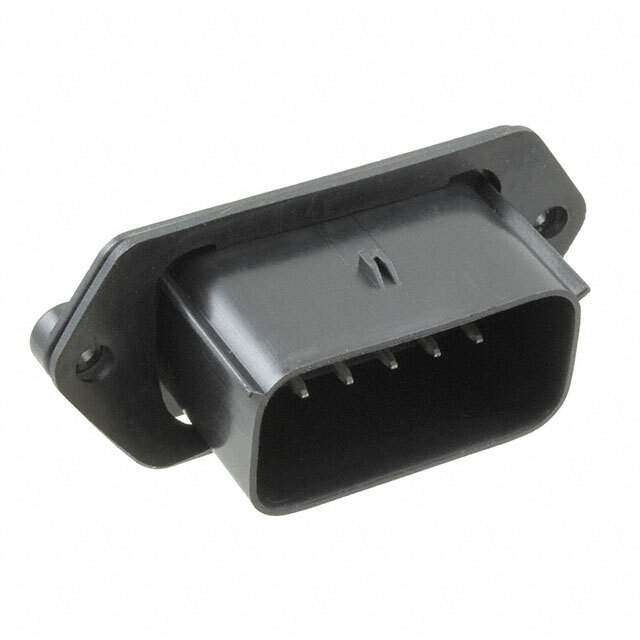

194280015 Real Image
Same model may have multiple batches, images only for reference.

194280015

Part No 194280015
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 12 WAY HEADER VERT SHORT
Datasheet
194280015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series MX150L 19428
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.230" (5.84mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.236" (6.00mm)
Mounting Panel Mount, Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.130" (3.30mm)
Insulation Height 1.562" (39.66mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Mounting Flange
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Industrial
Win Source Part Number 762228-194280015
Popularity Medium
Supply and Demand Status Limited
Family Name 19428
Introduction Date April 05, 2010
ECCN EAR99
Country of Origin Taiwan, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 194280015 CAD Model

Description

The Molex 762228-194280015 is a limited supply electronic component with a medium popularity rating and manufactured by Molex, LLC.

  • Win Source Part Number: 762228-194280015
  • Series: MX150L 19428
  • Packaging: Tray
  • Number of Positions: 12
  • Features: Board guide, Mounting flange
  • Connector Type: Header
  • Contact Type: Male pin
  • Positions Loaded: All
  • Number of Rows: 2
  • Termination: Solder
  • Fastening Type: Locking ramp
  • Contact Material: Copper alloy
  • Ingress Protection: IP67 - dust tight, waterproof
  • Material Flammability Rating: UL94 V-0
  • Applications: Automotive, General purpose, Industrial
  • Mounting: Panel mount, Through hole
  • Insulation Material: Polybutylene terephthalate (PBT), Glass filled
  • Style: Board to cable/wire
  • Pitch - Mating: 0.230" (5.84mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100μin (2.54μm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100μin (2.54μm)
  • Family Name: 19428
  • Insulation Color: Black
  • Categories: Connectors and interconnects
  • Shrouding: Shrouded - 4 wall
  • Row Spacing - Mating: 0.236" (6.00mm)
  • Contact Length - Post: 0.130" (3.30mm)
  • Insulation Height: 1.562" (39.66mm)
  • Contact Shape: Square
  • Introduction Date: April 05, 2010
  • ECCN: EAR99
  • Country of Origin: Taiwan, United States of America
  • Estimated EOL Date: 2028
  • Halogen Free Compliant: Yes
  • Additional Information: Not available
