Part No	1723163216
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors

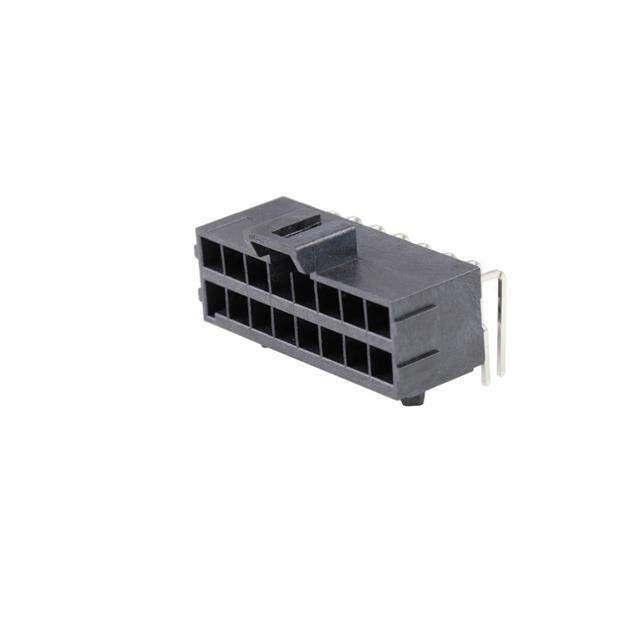

Description	ULTRAFIT HDR RT 2R BLK 16 POS / Connector Header Through Hole, Right Angle 16 position 0.138" (3.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Ultra-Fit 172316
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.181" (4.60mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.534" (13.56mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC/DC
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number	172316
Standard Package	50
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1341319-1723163216
Ultra Librarian 3D Model	Ultra Librarian 1723163216 CAD Model

Alternative Products

Description

The Ultra-Fit 172316 series male pin header connector is a board guide connector with 16 positions.

Applications: automotive, general-purpose, industrial, lighting, medical, military, and telecommunications
Material: copper alloy
Voltage Rating: 600VAC/DC
Termination: solder
Mounting: through hole with a latch holder
Contact Finish Mating: gold with a thickness of 15.0μin (0.38μm)
Contact Finish Post: tin with a thickness of 60.0μin (1.52μm)
Insulation Material: liquid crystal polymer (LCP)
Flammability Rating: UL94 V-0
Package: tray
Design: shrouded 4-wall
Contact Length for Post: 0.126" (3.20mm)
Contact Length for Mating: 0.126" (3.20mm)
Row Spacing for Mating: 0.181" (4.60mm)
Operating Temperature: -40°C to 120°C
