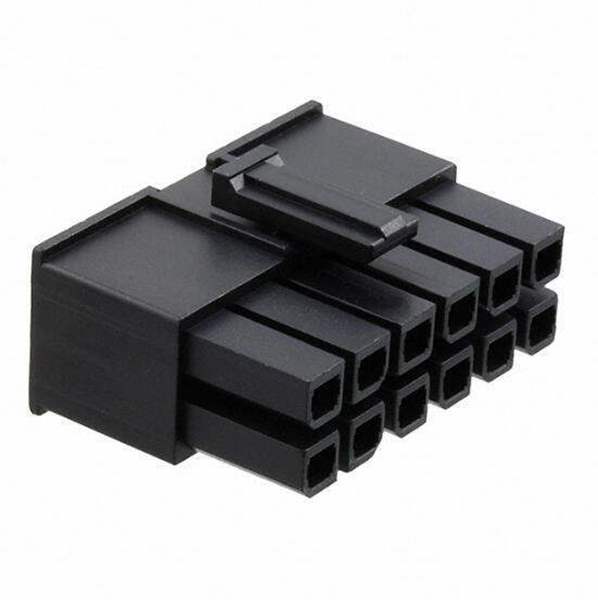

1716920112 Molex
Same model may have multiple batches, images only for reference.

1716920112

Part No 1716920112
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 12POS 5.70MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Rectangular Connector Housings
Series Mega-Fit
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 12
Pitch 0.224" (5.70mm)
Number of Rows 2
Row Spacing 0.224" (5.70mm)
Mounting Type Free Hanging (In-Line)
Win Source Part Number WS1206285-1716920112
Ultra Librarian 3D Model Ultra Librarian 1716920112 CAD Model

Description

Mega-Fit Power Connectors deliver 26.0A per circuit through fully protected header pins and receptacle terminals while offering unique keying options to ensure proper mating during termination
