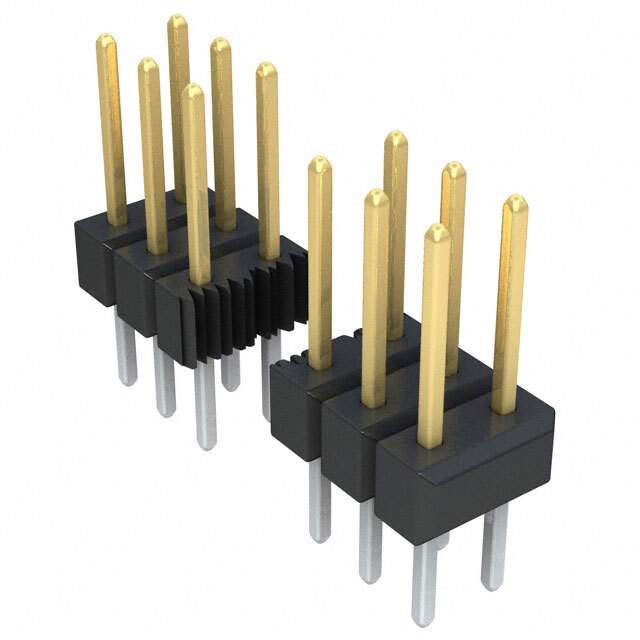

Same model may have multiple batches, images only for reference.

0010897602

Name: 0010897602
Brand: Molex, LLC
SKU: 1333044
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0010897602
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 60POS 2.54MM / Connector Header Through Hole 60 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	60
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.107" (2.71mm)
Overall Contact Length	0.437" (11.10mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number	001089
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	10897602,0010-89-7602,WM50012-60,10-89-7602,WM50012-7602-ND,WM26860,0010-89-7602-E,0010897602-E,10897602-E,WM50012-7602,10-89-7602-E,WM26860-ND
Standard Package	1
Win Source Part Number	1333044-0010897602
Ultra Librarian 3D Model	Ultra Librarian 0010897602 CAD Model

Alternative Products

Description

The 1333044-0010897602 is a male pin header connector with 60 positions and two rows.

Manufacturer: Molex
Applications: Automotive, Medical, and Telecommunications
Pitch: 0.100" (2.54mm)
Mounting: Through Hole
Contact Finish: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Contact Finish Thickness - Post: 74.8µin (1.90µm)
Height: 0.090" (2.29mm)
Overall Contact Length: 0.437" (11.10mm)
ROHS3 Compliant: Yes
Win Source Part Number: 1333044-0010897602
