Same model may have multiple batches, images only for reference.

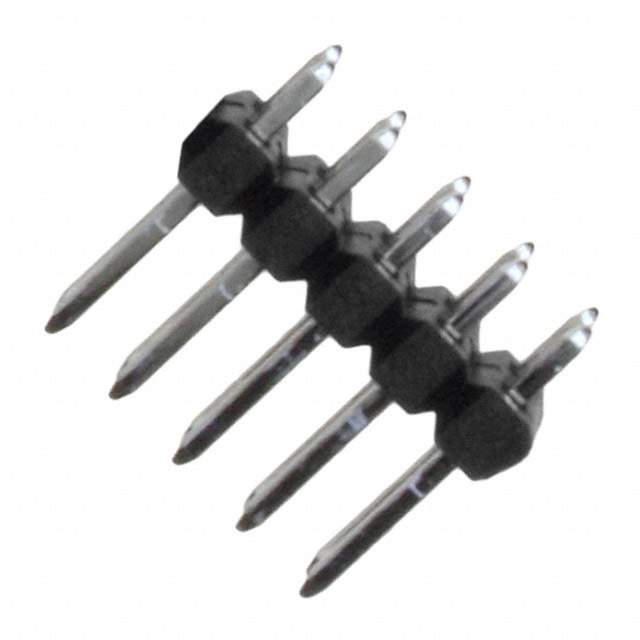

0010897101 Real Image
Same model may have multiple batches, images only for reference.

0010897101

Part No 0010897101
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.107" (2.71mm)
Overall Contact Length 0.437" (11.10mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number 001089
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 10-89-7101-E,WM26910,0010-89-7101,10-89-7101,WM26910-ND,0010-89-7101-E,WM50022-10,10897101,0010897101-E,10897101-E
Standard Package 1
Win Source Part Number 1332798-0010897101
Ultra Librarian 3D Model Ultra Librarian 0010897101 CAD Model

Description

The Molex header, breakaway series 10-position male pin connector is a perfect solution for board to board or cable applications.

  • Packaging: Bulk
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Tin
  • Contact Finish Thickness-Mating: 150.0µin (3.81µm)
  • Contact Length-Mating: 0.240" (6.10mm)
  • Voltage Rating: -
  • Current Rating: - amps
  • Applications: Automotive, General Purpose, Lighting, Medical, and Telecommunications
