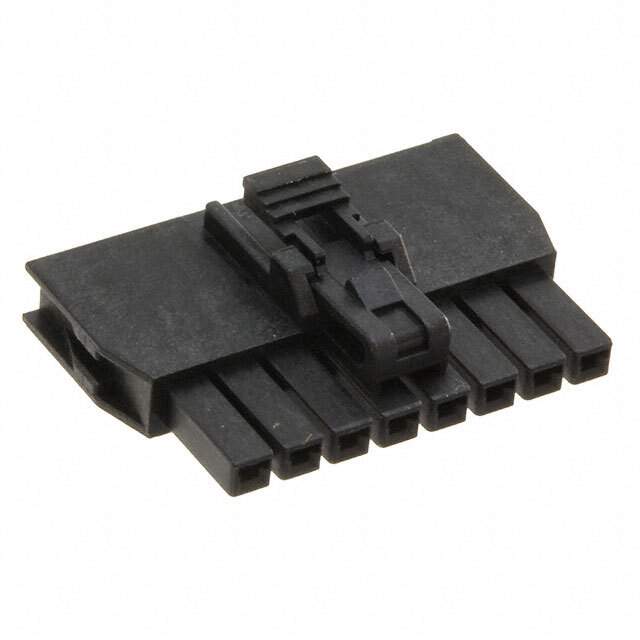

The 105307-1208 is a Micro-Fit 3.0 Connector Housing manufactured by Molex, LLC. It's part of the Micro-Fit 3.0 series known for its high-density design and secure locking features, making it suitable for a variety of applications that require reliable and compact connections.

Applications:

• Consumer Electronics: Used in devices like TVs, home appliances, and audio equipment for internal power and signal connections.
• Industrial Automation: Employed in control systems, robotics, and other industrial equipment where space-saving and reliable connections are crucial.
• Automotive Industry: Integrated into automotive electronics for connecting various components within vehicles.
• Data and Telecommunications: Utilized in networking equipment, servers, and data storage devices.
• Medical Equipment: Used in medical devices for secure and reliable power and signal transmission.

Features:

• Compact Design: Micro-Fit 3.0 series offers a small footprint for high-density applications.
• Positive Locking: Features a secure locking mechanism to prevent accidental disconnections, ensuring reliable connections.
• Polarization: Incorporated polarization features to prevent mis-mating and ensure correct connections.
• Durable Material: Constructed from high-quality materials to withstand harsh environments and provide long-lasting performance.
• UL and CSA Approved: Meets UL and CSA safety standards.

Benefits:

• Reliable Connection: The positive locking mechanism ensures a stable and reliable connection, minimizing signal disruptions.
• Space-Saving: Its compact design allows for use in densely populated circuit boards and small electronic devices.
• Easy to Use: The polarization feature simplifies the assembly process and reduces the risk of incorrect connections.
• Long-Term Performance: Durable materials ensure long-term reliability and performance, even in demanding environments.
• Safety Compliance: UL and CSA approvals ensure that the product meets safety requirements.

Additional Details:

The 105307-1208 housing is designed to accommodate 12 circuits and has a 3.0mm pitch. It is typically made of a high-temperature thermoplastic material suitable for reflow soldering processes. The housing works with corresponding Molex Micro-Fit 3.0 terminals to create a complete connection system. Its compact size and secure locking features make it ideal for applications where reliability and space are critical.
