Part No 1050171001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors

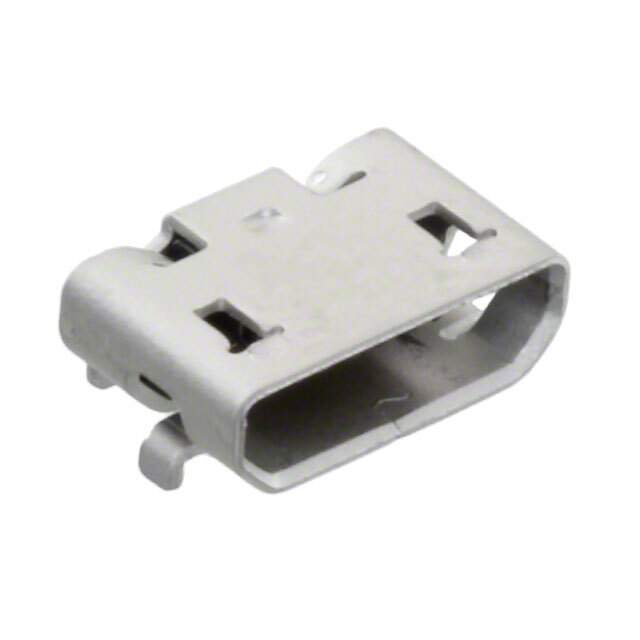

Description CONN RCPT USB2.0 MICRO B SMD R/A / Micro-USB B Receptacle, Bottom Mount, Surface Mount, Lead-Free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Reel
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Style Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Pick and Place, Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A, 1.8A
Voltage - Rated 30VAC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800772-1050171001
Ultra Librarian 3D Model Ultra Librarian 1050171001 CAD Model

Description

The Molex 800772-1050171001 is a USB-micro B connector from Molex.

  • Contact Finish: Gold
  • Shielding: Shielded
  • Mounting Style: Surface Mount, Right Angle
  • Features: Pick and place, solder retention
  • Voltage Rating: 30VAC
  • Contacts: 5
  • Gender: Receptacle
  • USB Specification: USB 2.0
  • Temperature Range: -30°C to 85°C
  • Material: Steel, Stainless
  • Mounting Feature: Horizontal
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 1A, 1.8A
