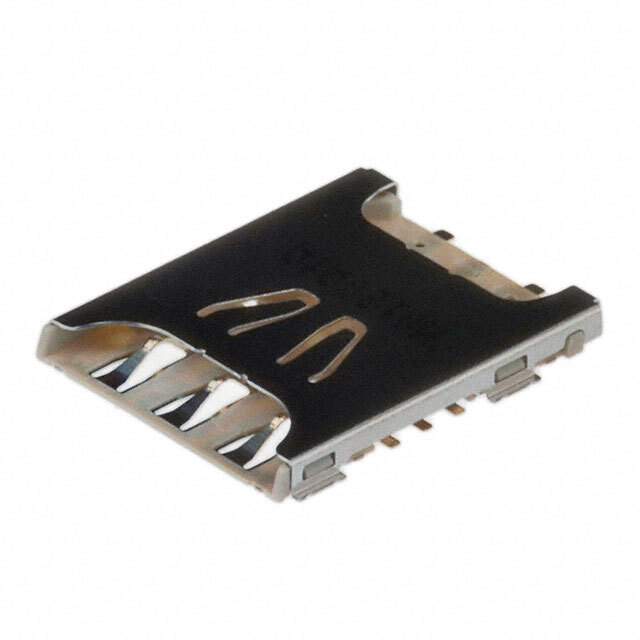

Same model may have multiple batches, images only for reference.

1042240820

Name: 1042240820
Brand: Molex, LLC
SKU: 849215
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1042240820
Manufacturer	Molex, LLC
Catalog	Memory Connectors - PC Card Sockets
Description	NANOSIM SOCKET 1.11H P/PULL TYPE
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr	Molex, LLC
Series	104224
Package	Tape & Reel
Product Status	Active
Card Type	NANO SIM
Number of Positions	6
Connector Type	Connector
Insertion, Removal Method	Push In, Pull Out
Mounting Type	Surface Mount, Right Angle
Height Above Board	0.044" (1.12mm)
Mounting Feature	Normal, Standard - Top
Contact Finish	Gold
Contact Finish Thickness	2.00µin (0.051µm)
Base Product Number	104224
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849215-1042240820
Ultra Librarian 3D Model	Ultra Librarian 1042240820 CAD Model

Description

The 104224 series PC card socket is a reliable connector for memory cards. Molex, LLC manufactures the 104224 series.

Positions: 6
Card Type: NANO SIM
Contact Finish: Gold
Height Above Board: 0.044" (1.12mm)
Mounting Type: Surface Mount
Package: 2,000 pcs
Product Status: Active
