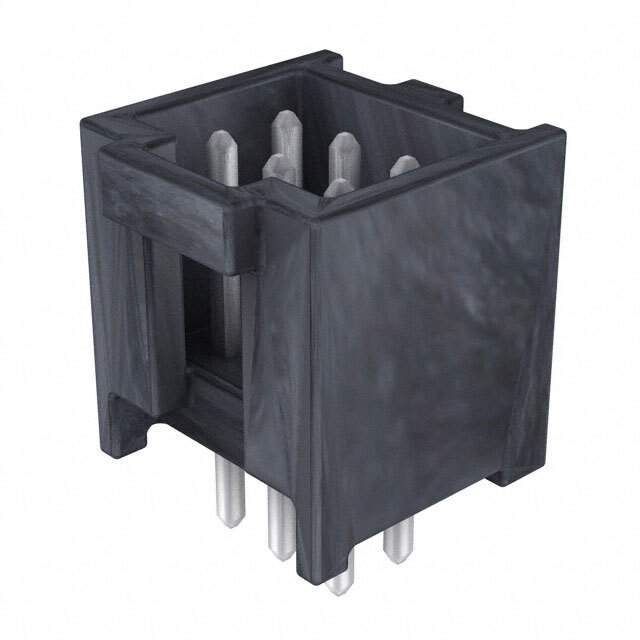

0901301106

Get a Quote

Part No	0901301106
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	C-Grid III 90130
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.429" (10.90mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1µin (3.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Features	-
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	Automotive, General Purpose
Base Product Number	90130
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1 pcs
Win Source Part Number	1380419-0901301106
Ultra Librarian 3D Model	Ultra Librarian 0901301106 CAD Model

Description

The C-Grid III 90130 series is a high-quality header connector designed for various applications, including automotive and general purpose use from Molex, LLC.

Number of Positions: 6
Contact Gender: Male
Contact Material: Brass
Contact Finish: Tin
Number of Rows: 2
Termination Method: Solder
Shrouded: 4 Walls
Pitch: 0.100" (2.54mm)
Contact Length: 0.266" (6.75mm)
Overall Contact Length: 0.510" (12.95mm)
Insulation Height: 0.429" (10.90mm)
Flammability Rating: UL94 V-0
Moisture Sensitivity Level: 1
