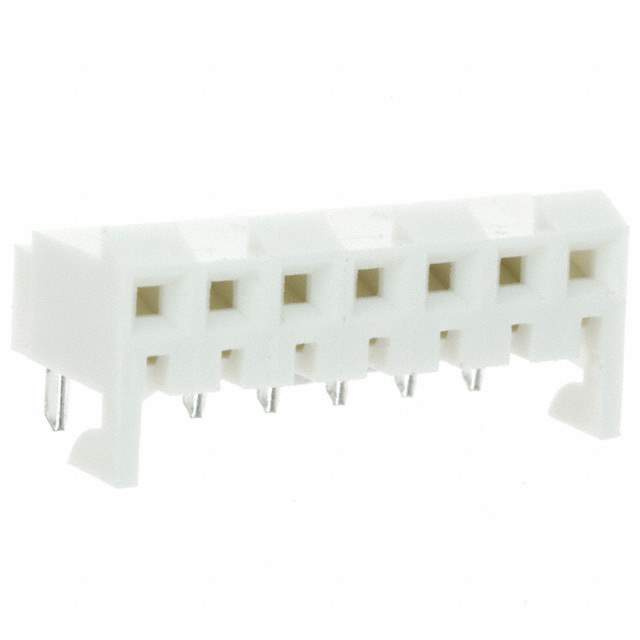

09-48-1074 Real Image
Same model may have multiple batches, images only for reference.

09-48-1074

Part No 09-48-1074
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description KK 396 PC Board Connector, Right Angle, Polyester Connector, 5.00µm Tin (Sn), 7 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Connector Type Receptacle, Socket
Contact Gender Female
Contact Material Bronze
Contact Plating Tin
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 5 A
Fastening Type Ramp
Gender Female
Housing Color White
Housing Material Polyester
Lead Free Lead Free
Max Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 6
Number of Contacts 7
Number of Positions 7
Number of Rows 1
Orientation Right Angle
Pitch 3.96 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Win Source Part Number 1164257-09-48-1074
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 09-48-1074 CAD Model

Description

The Molex 09-48-1074 is a high-quality circular connector housing that can be used in various applications such as automotive, industrial, and consumer electronics.

  • Positions: 7-position receptacle socket
  • Pitch: 3.96mm
  • Manufacturer: Molex
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Alternative Part Numbers: 0009481074, 009481074, 09481074, 9481074, and A-41815-0007
