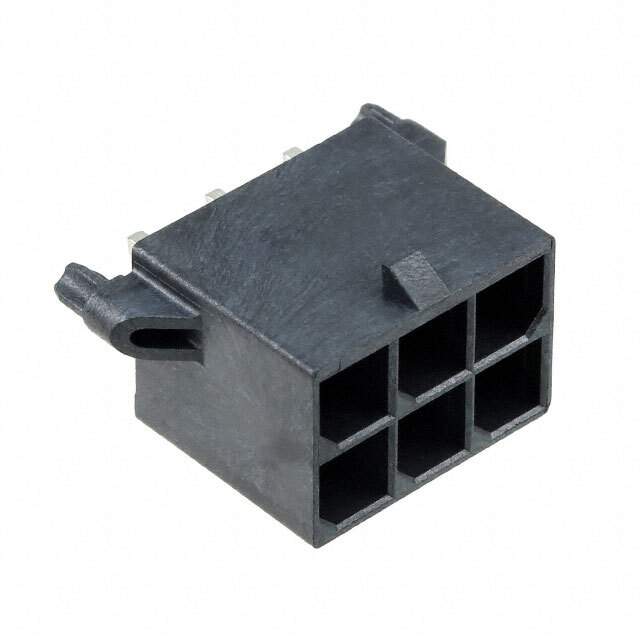

0768290006 Real Image
Same model may have multiple batches, images only for reference.

0768290006

Part No 0768290006
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 5.7MM / Connector Header Through Hole 6 position 0.224" (5.70mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Mega-Fit
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.224" (5.70mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.224" (5.70mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.147" (3.73mm)
Insulation Height 0.583" (14.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Copper
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide, Glow Wire Compliant
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Telecommunications
Base Product Number 076829
Standard Package 960 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 858194-0768290006
Ultra Librarian 3D Model Ultra Librarian 0768290006 CAD Model

Description

The Mega-Fit series is a set of male pin headers designed for use in connectors and interconnects from Molex.

  • Positions: 6
  • Loading: All Contacts
  • Rows: 2
  • Pitch: 0.224" (5.70mm)
  • Feature: Board Guide
  • Compliance: Glow Wire
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Material: Copper
  • Contact Finish: Tin
  • Shrouded: 4 Walls
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Mounting Type: Through Hole
  • Insulation Height: 0.583" (14.80mm)
  • Row Spacing: 0.224" (5.70mm)
  • Package: Tray
  • Standard Package Quantity: 960 pcs
