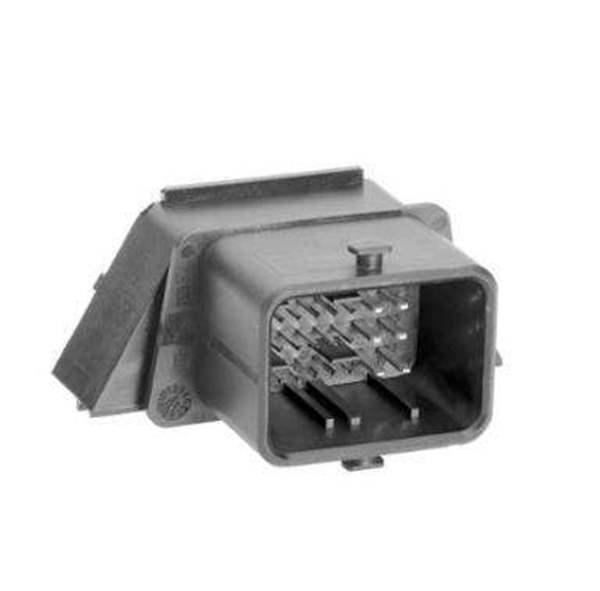

0643341001Molex
Same model may have multiple batches, images only for reference.

0643341001

Part No 0643341001
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER BRD EDGE 32POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Number of Positions 32
Shrouding Shrouded - 4 Wall
Termination Solder
Insulation Height 0.980" (24.90mm)
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Win Source Part Number WS1210104-0643341001
Ultra Librarian 3D Model Ultra Librarian 0643341001 CAD Model

Description

Connector Header Board Edge, Through Hole, Right Angle 32 position
