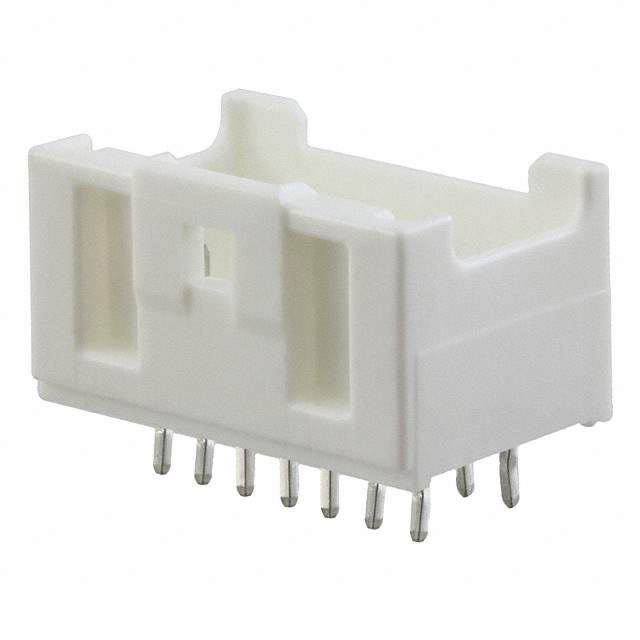

0559171410 Real Image
Same model may have multiple batches, images only for reference.

0559171410

Part No 0559171410
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197396-0559171410
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors- Headers, Male Pins
Series MicroClasp 55917
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Row Spacing - Mating 0.197" (5.00mm)
Shrouding Shrouded - 4 Wall
Ultra Librarian 3D Model Ultra Librarian 0559171410 CAD Model

Description

The Molex MicroClasp 55917 is a rectangular connector with male pins. It belongs to the MicroClasp series and is designed as a shrouded, 4-wall connector. The pitch for mating is 0.079 inches (2.00mm) and the row spacing for mating is 0.197 inches (5.00mm). This connector comes in a tray package and is commonly used in header applications. The Molex MicroClasp 55917 is an active product in the market.
