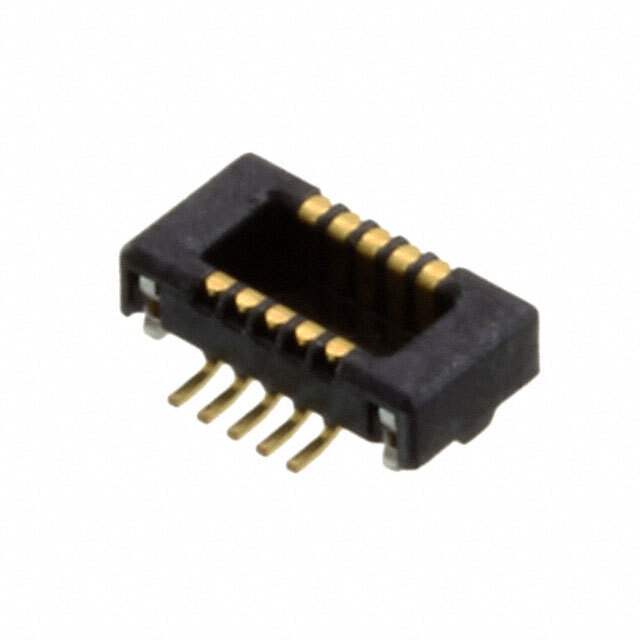

Same model may have multiple batches, images only for reference.
0559099872 Molex
Same model may have multiple batches, images only for reference.

0559099872

Part No 0559099872
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 10POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201831-0559099872
Manufacturer Molex
Category Connectors, Interconnects- Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Series SlimStack 55909
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Number of Positions 10
Connector Type Plug, Outer Shroud Contacts
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Ultra Librarian 3D Model Ultra Librarian 0559099872 CAD Model

Description

The Molex SlimStack 55909 is a versatile rectangular connector array designed for board-to-board connections.

  • Pitch: 0.016" (0.40mm)
  • Positions: 10
  • Connector Type: Plug with Outer Shroud Contacts
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR) / Cut Tape (CT)
  • Series: SlimStack
  • Manufacturer: Molex
  • Features: Solder Retention
  • Product Status: Active
