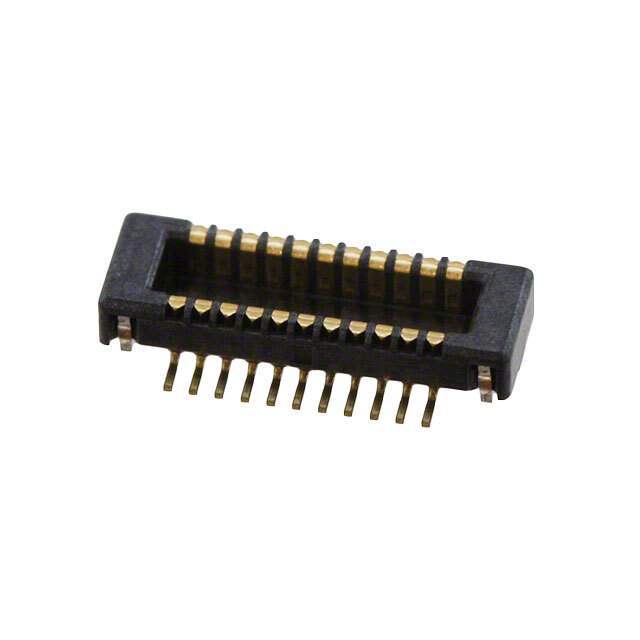

Part No 055909-2274
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description CONN PLUG 22POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207215-055909-2274
Manufacturer Molex
Category Connectors, Interconnects-Rectangular Connectors-Arrays, Edge Type, Mezzanine (Board to Board)
Series SlimStack 55909
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 22
Mated Stacking Heights 1.5mm
Height Above Board 0.045" (1.14mm)
Base Product Number 055909
Ultra Librarian 3D Model Ultra Librarian 055909-2274 CAD Model

Description

22 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
