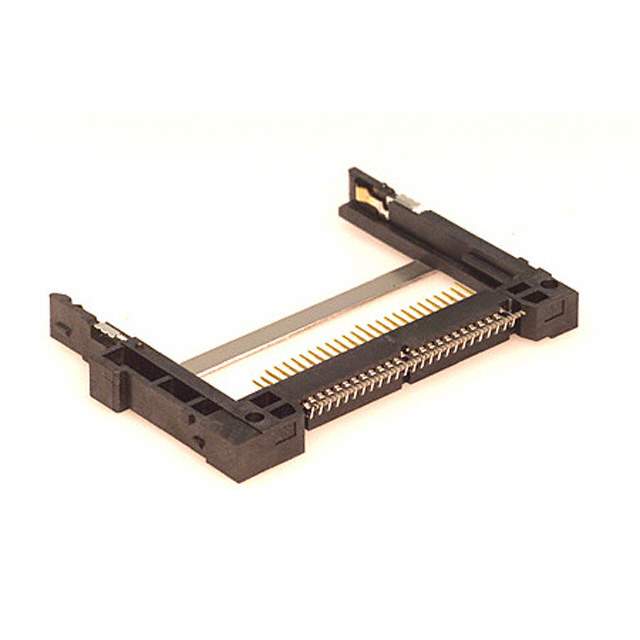

0552445021 Real Image1 0552445021 Real Image2
Same model may have multiple batches, images only for reference.
0552445021 Real Image1 0552445021 Real Image2
0552445021 Real Image1 0552445021 Real Image2
Same model may have multiple batches, images only for reference.

0552445021

Part No 0552445021
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN COMPACT FLASH CARD R/A SMD / 50 Position Card Connector CompactFlash® - Type I, II Surface Mount, Right Angle Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>PC Card Sockets
Mfr Molex, LLC
Series 55244
Package Tray
Product Status Obsolete
Card Type CompactFlash® - Type I, II
Number of Positions 50
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Ejector Side -
Mounting Type Surface Mount, Right Angle
Features Board Guide, Card Guide
Height Above Board 0.230" (5.85mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Base Product Number 055244
RoHS Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 120 pcs
Win Source Part Number 1380935-0552445021
Ultra Librarian 3D Model Ultra Librarian 0552445021 CAD Model

Description

The 1380935-0552445021 is a PC Card Socket connector from Molex, LLC.

  • Part Status: Obsolete
  • Connector Type: PC Card Socket
  • Number of Positions: 50
  • Pitch: -
  • Number of Rows: -
  • Mounting Type: Surface Mount, Right Angle
  • Features: Board and Card Guides
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 8.00µin (0.203µm)
  • Height Above Board: 0.230" (5.85mm)
  • Operating Temperature: -
  • Card Type: CompactFlash® - Type I, II
  • Insertion, Removal Method: Push In, Pull Out
  • Material: -
  • Ingress Protection: -
  • Color: -
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • RoHS Status: Not RoHS Compliant
  • Applications: -
