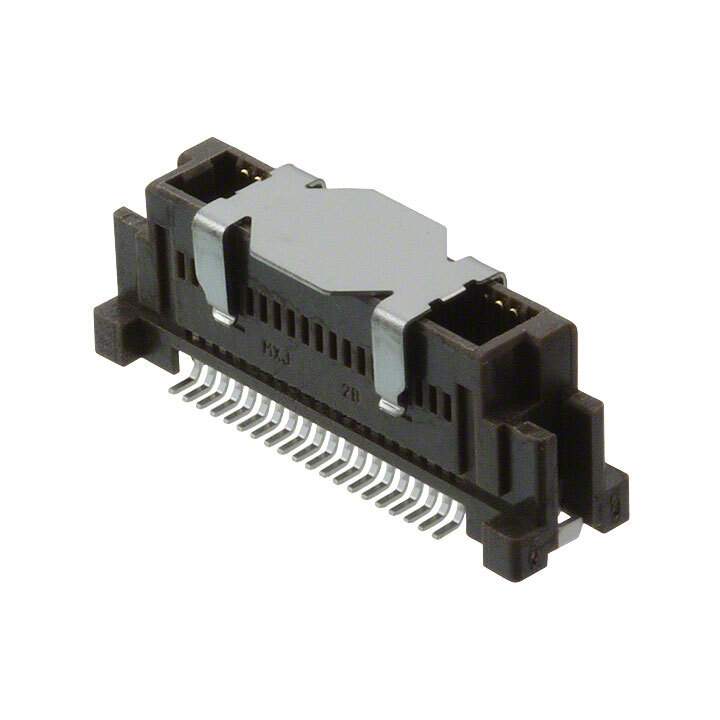

0536470474 Real Image
Same model may have multiple batches, images only for reference.

0536470474

Part No 0536470474
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN PLUG 40POS SMD GOLD / 40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Molex, LLC
Series SlimStack 53647
Package Tape & Reel
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 40
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Mated Stacking Heights 8mm, 14mm
Height Above Board 0.275" (6.99mm)
Base Product Number 053647
Standard Package 840 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 743419-0536470474
Ultra Librarian 3D Model Ultra Librarian 0536470474 CAD Model

Description

The 743419-0536470474 is a slim stack connector array from Molex, LLC.

  • Series: SlimStack 53647
  • Positions: 40
  • Pitch: 0.025" (0.64mm)
  • Features: Board guide, solder retention
  • Connector Type: Plug with outer shroud contacts
  • Rows: 2
  • Contact Finish: Gold (10.0μin (0.25μm))
  • Packaging: Tape and reel
  • Mated Stacking Heights: 8mm, 14mm
  • Height Above Board: 0.275" (6.99mm)
  • Standard Package: 840 pieces
  • Mounting: Surface mount
  • MSL Level: 1 (unlimited)
  • REACH Status: unaffected
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
