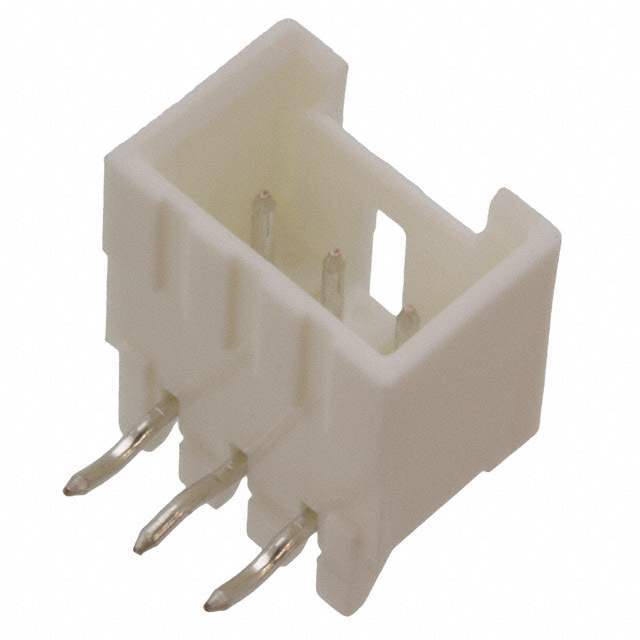

0534260310 Molex
Same model may have multiple batches, images only for reference.

0534260310

Part No 0534260310
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207176-0534260310
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series Mini-Lock 53426
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Rows 1
Shrouding Shrouded - 4 Wall
Termination Kinked Pin, Solder
Ultra Librarian 3D Model Ultra Librarian 0534260310 CAD Model

Description

Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)
