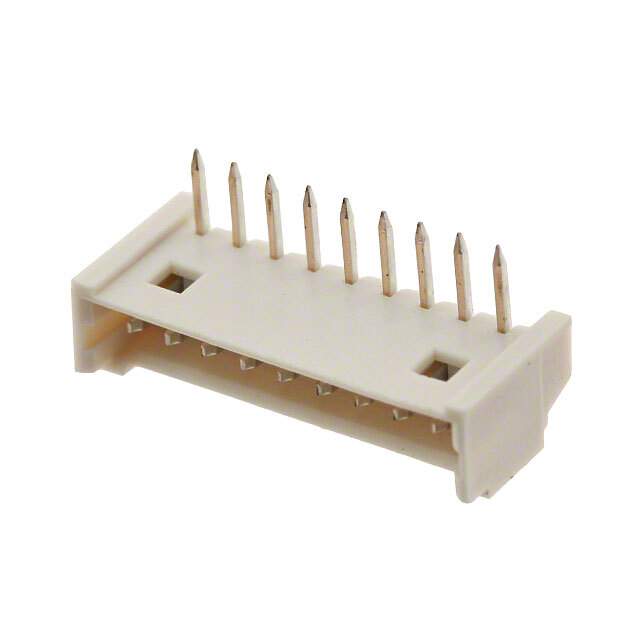

0530480910 Real Image
Same model may have multiple batches, images only for reference.

0530480910

Part No 0530480910
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 9POS 1.25MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 9 position 0.049" (1.25mm)
Manufacturer Molex, LLC
Series PicoBlade 53048
Package Tray
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 053048
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 53048-0910-CL100, 530480910, WM1749, 53048-0910-C, 530-48-0910-P, 53048-0910, 53048-0910-P
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907303-0530480910
Ultra Librarian 3D Model Ultra Librarian 0530480910 CAD Model

Description

The Molex PicoBlade 53048 series is a connector header through hole, right angle 9 position 0.049" (1.25mm) that comes in a tray package.

  • Operating Temperature: -40°C to 105°C
  • Family Name: 053048
  • Supply and Demand Status: Balance
  • Quantity Per Package: 2000
  • REACH Status: Unaffected
  • Estimated Production Lead Time: 13 weeks
  • Category: Connectors
  • ECCN: EAR99
