Same model may have multiple batches, images only for reference.

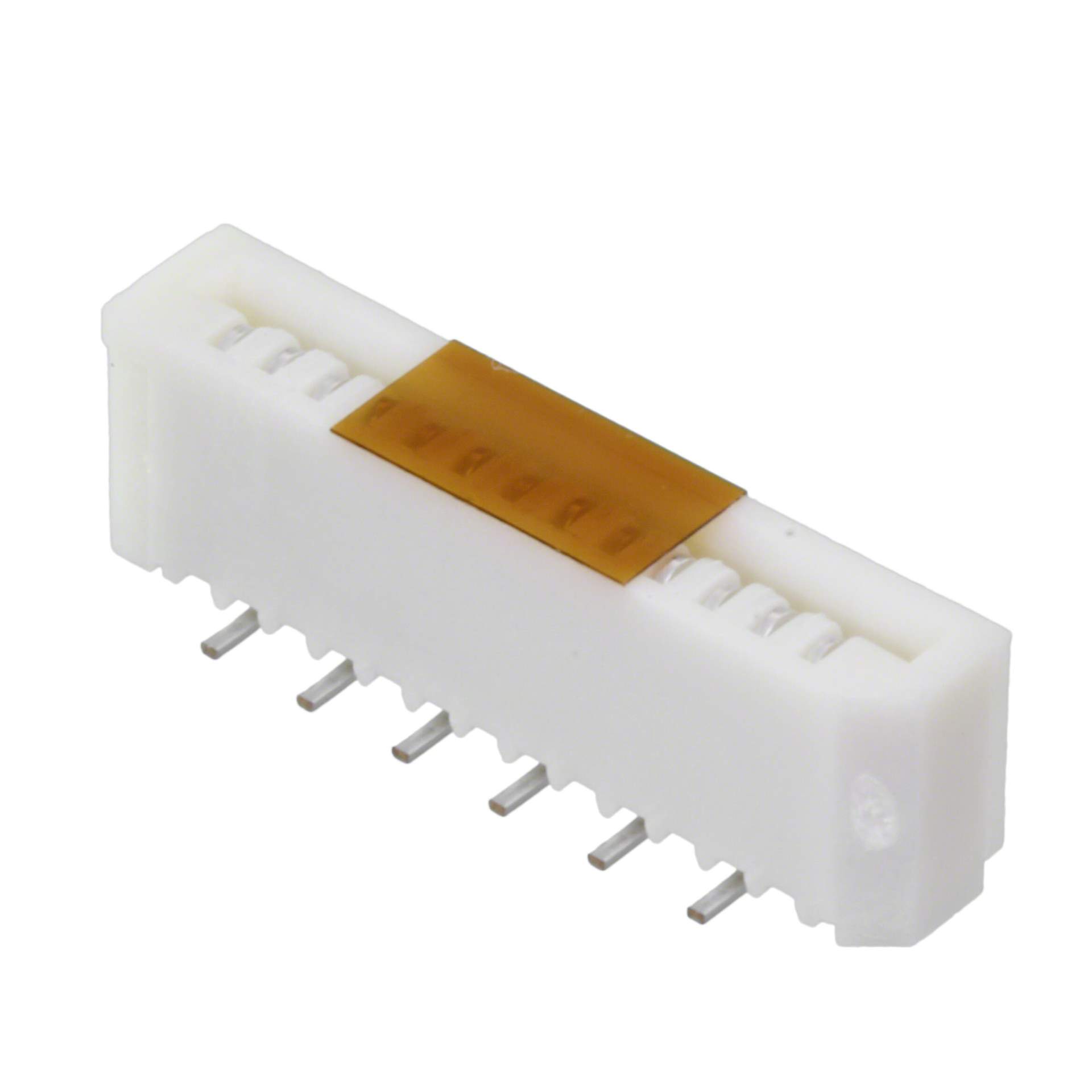

0528081371 Real Image
Same model may have multiple batches, images only for reference.

0528081371

Part No 0528081371
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 13POS 1MM SMD / 13 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series Easy-On 52808
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 13
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.199" (5.05mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Housing Material Polyphenylene Sulfide (PPS)
Voltage Rating 125V
Temperature Range - Operating -20°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Mating Cycles 10
Base Product Number 052808
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 856451-0528081371
Ultra Librarian 3D Model Ultra Librarian 0528081371 CAD Model

Description

The Easy-On 52808 FFC, FPC Connector Assembly is a versatile and reliable component for your electronic projects.

  • Product: Easy-On 52808 FFC, FPC Connector Assembly
  • Positions: 13
  • Pitch: 0.039" (1.00mm)
  • Contacts: Tin Bismuth
  • Housing: Polyphenylene Sulfide (PPS)
  • Mounting: Surface Mount
  • Voltage Rating: 125V
  • Temperature Range: -20°C to 85°C
