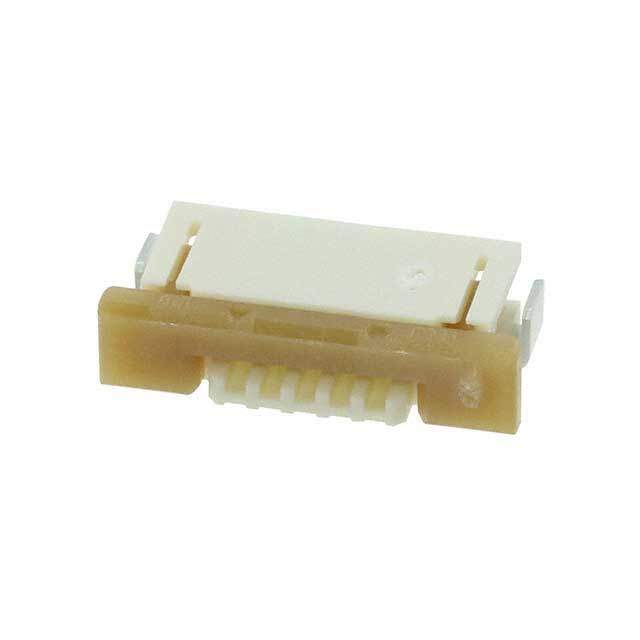

0522710579 Real Image
Same model may have multiple batches, images only for reference.

0522710579

Part No 0522710579
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 1.00mm (.039") Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom ContactStyle, 5 Circuits, Lead-free, High Barrier Packaging | CONN FPC BOTTOM 5POS 1.00MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 5
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.118" (3.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Dielectric Material Polyamide (PA46), Nylon 4/6
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 39.4μin (1.00μm)
Mating Cycles 30
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120688-0522710579
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0522710579 CAD Model

Description

The Molex 1120688-0522710579 is an SMT, right-angle mounting style connector with a pitch of 0.039" (1.00mm).

  • Mounting Style: SMT, right-angle
  • Pitch: 0.039" (1.00mm)
  • Number of Rows: Single
  • Number of Positions: 5
  • Contact Material: phosphor bronze
  • Contact Finish Thickness: 39.4μin (1.00μm) tin bismuth
  • Voltage Rating: 50V
  • Operating Temperature: -40°C to 85°C
  • Height Above Board: 0.118" (3.00mm)
  • Flat Flex Type: FPC
