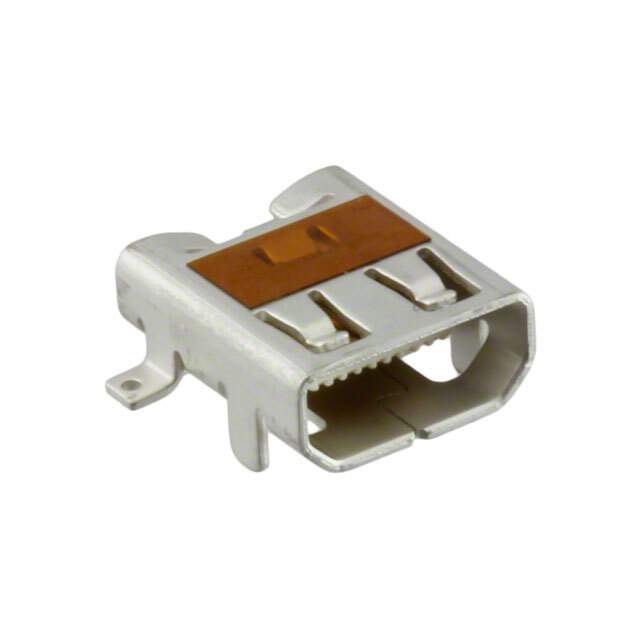

0467652311 Real Image
Same model may have multiple batches, images only for reference.

0467652311

Part No 0467652311
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCP MICRO HDMI 19POS SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Molex, LLC
Series 46765
Package Tape & Reel
Product Status Last Time Buy
Connector Type HDMI - Micro
Number of Contacts 19
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.8A
Voltage - Rated 30V
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Base Product Number 046765
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856118-0467652311
Ultra Librarian 3D Model Ultra Librarian 0467652311 CAD Model

Description

The 46765 series HDMI connector assembly is designed for high-definition multimedia interface applications.

  • Connector Type: Micro HDMI
  • Termination: Solder
  • Contact Finish: Gold
  • Shielded: Yes
  • Voltage Rating: 30V
  • Mounting Options: Surface Mount, Right-Angle Mounting, Through-Hole Mounting
  • Current Rating: 0.8A
  • Material: Steel and Stainless Steel
  • Mating Cycle: 5000
  • Manufacturer: Molex, LLC
  • Standard Package: 4,000 pcs
  • Status: Last Time Buy
