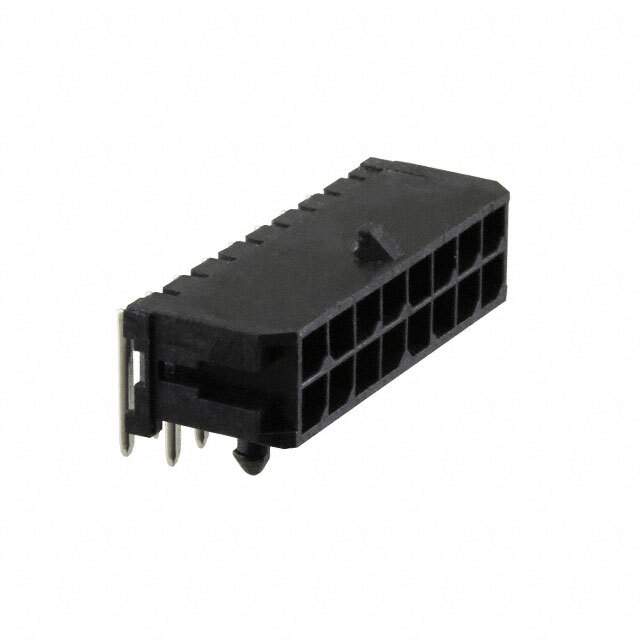

0430451600 Real Image
Same model may have multiple batches, images only for reference.

0430451600

Part No 0430451600
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 3MM / Connector Header Through Hole, Right Angle 16 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Micro-Fit 3.0 43045
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length -
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 8A
Voltage Rating 600V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 043045
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 792 pcs
Win Source Part Number 1380819-0430451600
Ultra Librarian 3D Model Ultra Librarian 0430451600 CAD Model

Description

The Micro-Fit 3.0 43045 Header is a high-quality and reliable connector for your electrical connections.

  • Connector Type: Header, Male Pins
  • Series: Micro-Fit 3.0 43045
  • Number of Positions: 16
  • Board Lock: Yes
  • Number of Rows: 2
  • Termination: Solder
  • Voltage Rating: 600V
  • Contact Material: Brass Alloy
  • Contact Finish: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP) Glass Filled
  • Application: Automotive, Industrial, Telecommunications
  • Packaging: Tray
  • Standard Package: 792
  • Manufacturer: Molex, LLC
