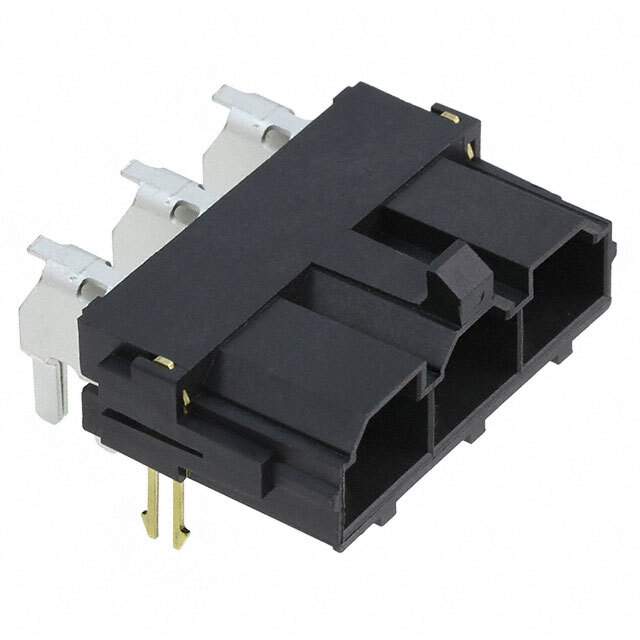

0428203223 Real Image1 0428203223 Real Image2
Same model may have multiple batches, images only for reference.
0428203223 Real Image1 0428203223 Real Image2
0428203223 Real Image1 0428203223 Real Image2
Same model may have multiple batches, images only for reference.

0428203223

Part No 0428203223
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 10MM / Connector Header Through Hole, Right Angle 3 position 0.394" (10.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Mini-Fit Sr 42820
Package Tube
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.394" (10.00mm)
Number of Positions 3
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.201" (5.11mm)
Overall Contact Length -
Insulation Height 0.421" (10.70mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Zirconium Alloy
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Board Lock
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 042820
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 16 pcs
Win Source Part Number 1380816-0428203223
Ultra Librarian 3D Model Ultra Librarian 0428203223 CAD Model

Description

The 1380816-0428203223 is a male pin header connector from Molex, LLC.

  • Connector Type: Header, Male Pins
  • Series: Mini-Fit Sr 42820
  • Number of Positions: 3
  • Board Lock: Yes
  • Termination: Solder
  • Contact Material: Copper Zirconium Alloy
  • Application: Automotive, General Purpose, Industrial, Medical, Telecommunications
  • Standard Package: 16
  • Manufacturer: Molex, LLC
