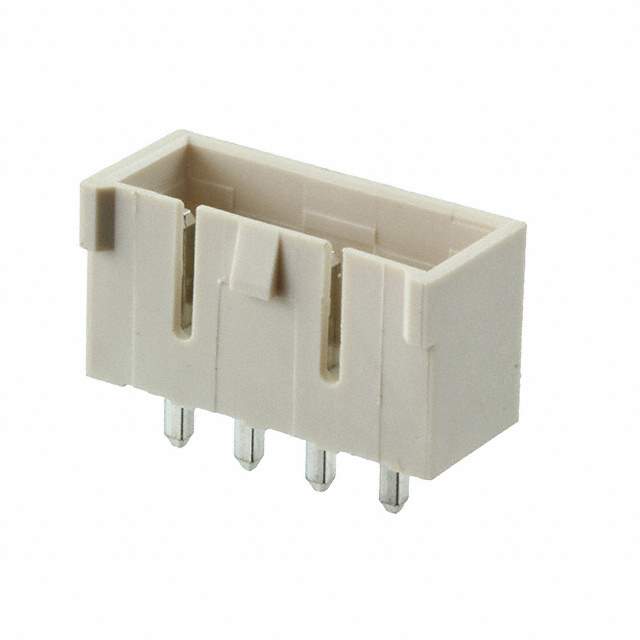

Same model may have multiple batches, images only for reference.

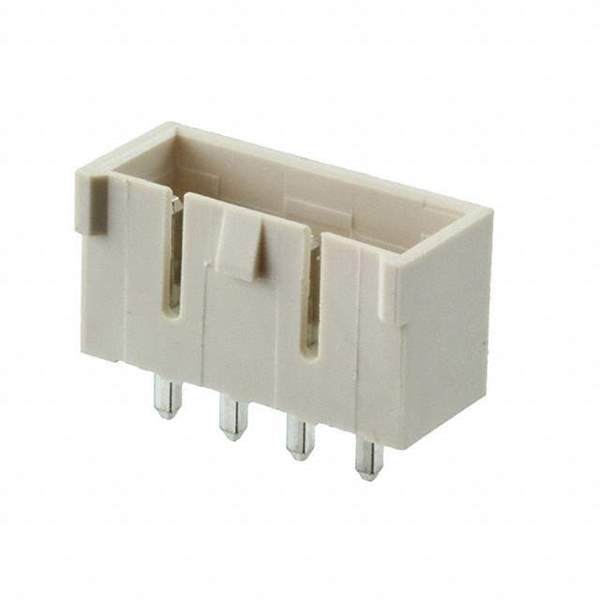

0353130460 Real Image
Same model may have multiple batches, images only for reference.

0353130460

Part No 0353130460
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 3.96mm (.156") Pitch Header, Vertical, Shrouded, with Positive Lock, 4 Circuits, PAPolyamide (Nylon) 6/6, Glass-filled, Natural, Lead-free | CONN HEADER VERT 4POS 3.96MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.394" (10.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1120574-0353130460
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0353130460 CAD Model

Description

The Molex electronic component is a male pin connector that has a shrouded-4 wall shrouding.

  • Insulation Color: Natural
  • Contact Shape: Square
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 500
  • Mounting: Through hole
  • Current Rating: -
