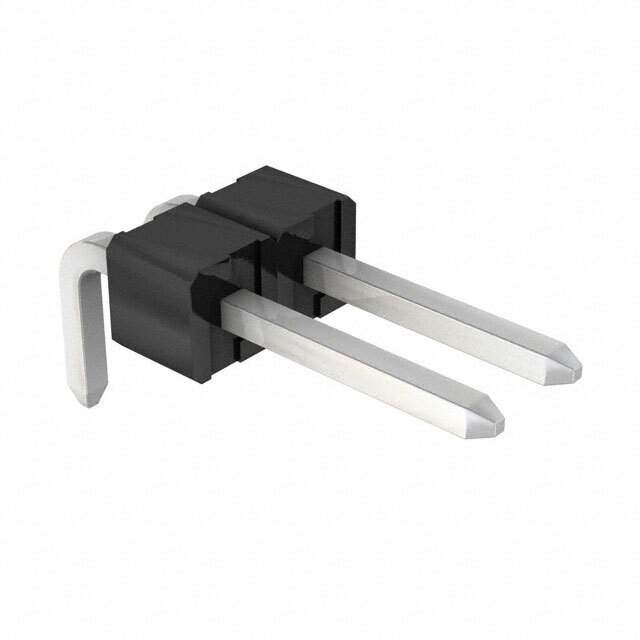

0022288020 Molex
Same model may have multiple batches, images only for reference.

0022288020

Part No 0022288020
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 2.54MM
Datasheet
0022288020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Bulk
Part Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Ultra Librarian 3D Model Ultra Librarian 0022288020 CAD Model

Description

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
