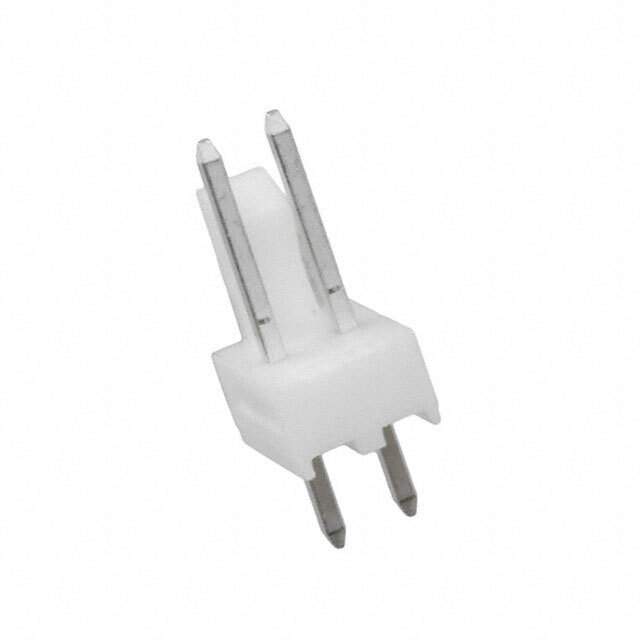

0022232021 Real Image1 0022232021 Real Image2
Same model may have multiple batches, images only for reference.
0022232021 Real Image1 0022232021 Real Image2
0022232021 Real Image1 0022232021 Real Image2
Same model may have multiple batches, images only for reference.

0022232021

Part No 0022232021
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series KK254, 6373
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.322" (8.18mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features -
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002223
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 2,850 pcs
Win Source Part Number 1380349-0022232021
Ultra Librarian 3D Model Ultra Librarian 0022232021 CAD Model

Description

The Molex KK254 6373 is a male pin header connector used in various applications including automotive, general purpose, medical, and telecommunications.

  • Applications: automotive, general purpose, medical, and telecommunications
  • Connector Type: rectangular
  • Positions: 2
  • Rows: single
  • Material: brass
  • Termination Type: solder
  • Fastening: friction lock
  • Insulation Material: polyamide (PA) and nylon
  • Contact Finish: tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Shrouded: 1 wall
  • Contact Shape: square
  • Contact Length: 0.560" (14.22mm)
  • Connection Type: board-to-board or cable
  • Pitch: 0.100" (2.54mm)
  • Flammability Rating: UL94 V-0
